Login for Access to Member Pricing

McLeod Racing

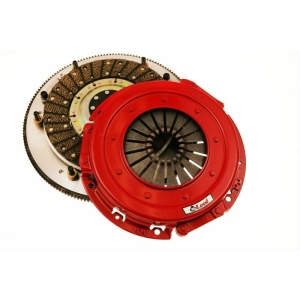

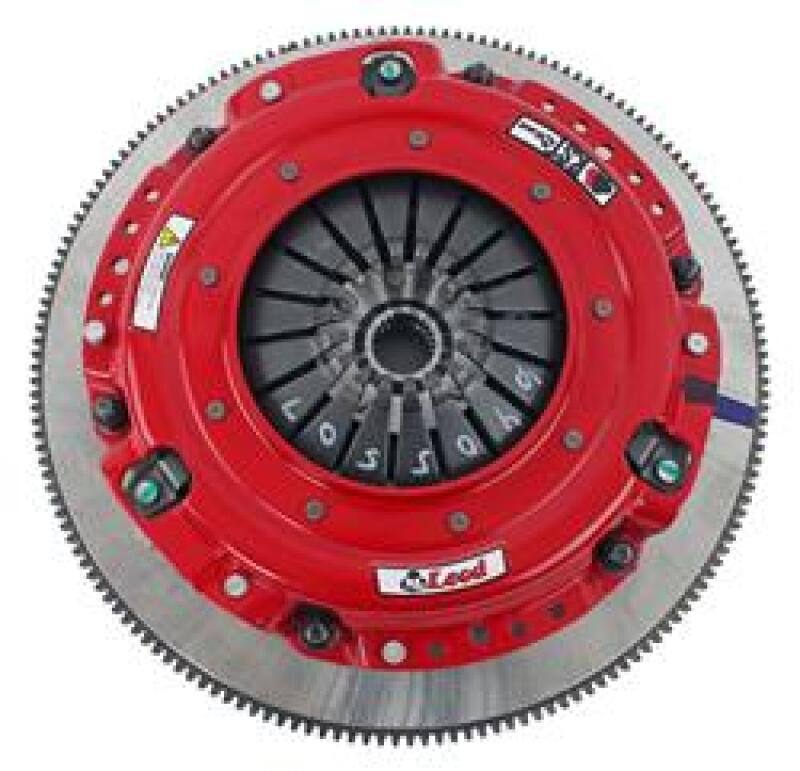

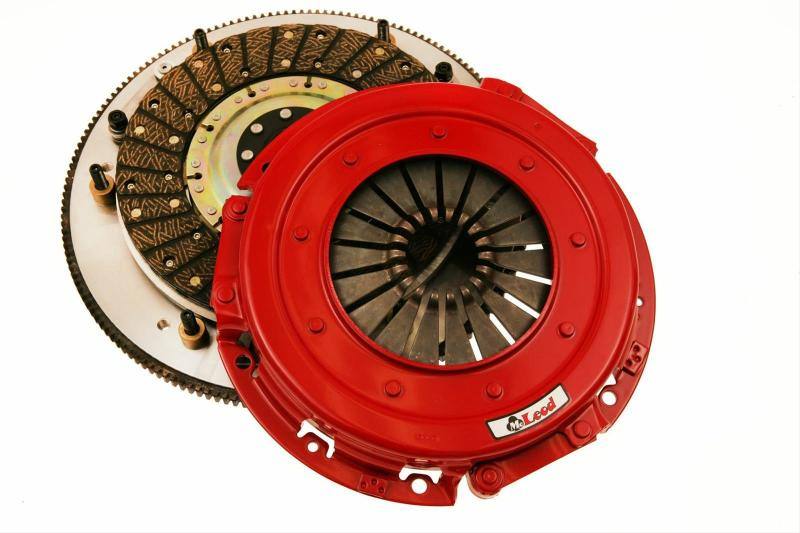

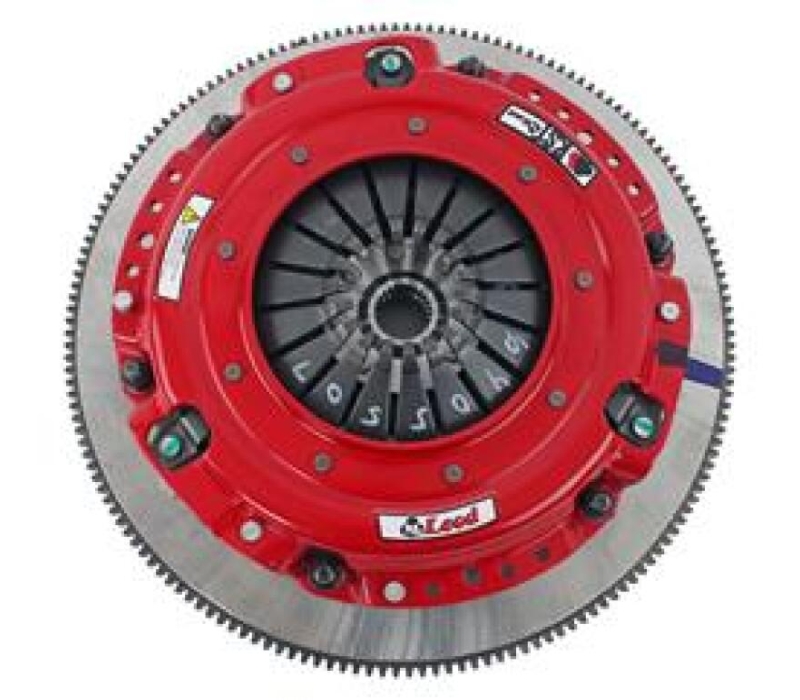

McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor

MPN: 6405507 Catalog #: 00834820 Category: Clutch Kits - Multi Check Vehicle Fitment

Product Details

Pontiac: G8 09 - 09 6.2 L Engine, Pontiac: GTO 05 - 06 6 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine, Chevrolet: Silverado 3500 Classic 07 - 07 6 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 4.8 L Engine, Chevrolet: C3500 97 - 04 5.7 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 5.3 L Engine, Chevrolet: L30 99 - 00 5.7 L Engine, Chevrolet: Silverado 2500 HD 01 - 06 6 L Engine, Chevrolet: Silverado 1500 HD 02 - 02 6 L Engine, Chevrolet: K3500 97 - 00 5.7 L Engine, Pontiac: GTO 04 - 04 5.7 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Chevrolet: Silverado 1500 04 - 04 6 L Engine, Chevrolet: P30 97 - 99 5.7 L Engine, Chevrolet: Silverado 1500 99 - 06 4.8 L Engine, Chevrolet: Silverado 3500 01 - 13 6 L Engine, Chevrolet: Silverado 2500 99 - 04 6 L Engine, Chevrolet: C2500 97 - 00 5.7 L Engine, Chevrolet: C1500 97 - 98 5.7 L Engine, Chevrolet: Silverado 2500 99 - 00 5.3 L Engine, Chevrolet: Silverado 2500 HD Classic 07 - 07 6 L Engine, Chevrolet: Colorado 09 - 12 5.3 L Engine, Chevrolet: Camaro 10 - 13 6.2 L Engine, Chevrolet: R25 97 - 98 5.7 L Engine, Chevrolet: Silverado 1500 99 - 06 5.3 L Engine, Chevrolet: SSR 05 - 06 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine, Chevrolet: Silverado 3500 04 - 05 5.7 L Engine, Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: K1500 97 - 98 5.7 L Engine, Chevrolet: Camaro 97 - 02 5.7 L Engine, Chevrolet: C35 97 - 00 5.7 L Engine, Chevrolet: K2500 97 - 00 5.7 L Engine, Chevrolet: Silverado 2500 01 - 02 5.7 L Engine, Chevrolet: Silverado 97 - 98 5.7 L Engine

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street-able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street only performance enthusiast. This unit is not intended for competition use! Look to our RXT and RXT 1200 for those applications. This series of clutch comes in 3 different configurations to best suit your needs. Adapter ring version. Another McLeod Racing exclusive. We build a twin disc clutch using a Patented Approved adapter ring to bolt to your supplied flywheel. Complete Unit with Dedicated Flywheel. No need to search for the clutch as one number and the flywheel as another number. McLeod Racing has you covered with one part number and a complete dedicated unit ready to plug and play. You have the choice of running a Billet Steel flywheel for your street applications or a Billet Aluminum flywheel for your track cars.

McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor, McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor, McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor, McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor

McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor, McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor, McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor, McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor

Fitment: RST TWIN DISC Steel Flywheel 6 Bolt LS Motor, LS1/LS2/LS3/LS6/LS7, 9-11/16 X 1-1/8 X 26 Spline. Organic/Organic Facing. 0 Balance 168T Flywheel. Clutch Patterns RST/RXT Steel Adapter Plate Pattern.

Intended for the high horsepower street fan, the McLeod RST twin disc clutch kit is an economically priced twin disc clutch kit. Able to handle 800hp, this clutch can handle almost any horse-power you can throw at it and still remain street able. Organic lined clutch discs will provide smooth engagement with a soft pedal effort to make this clutch kit ideal for the street performance enthusiast. This clutch kit is designed to be a high horsepower street clutch kit and is not designed to be used in a competition environment. Kit Includes: Pressure Plate, two organic friction discs, floater plate, steel flywheel and pilot tool.

  • PartNumber mlr6405507
  • Description RST TWN ASSY LS 6BLT CRK 1-1/8 X 26 SPLINE ORG FACING 168
  • Alignment Tool Included Yes
  • Clutch Patterns RST/RXT Steel Adapter Plate Pattern
  • Clutch Usage Street
  • Disc Diameter 9-11/16
  • Disc Material Organic
  • Disc Style Sprung Hub
  • Engine 6 BOLT CRANK
  • Flywheel Included Yes
  • Flywheel Material Steel
  • Hardware Included Yes
  • Horsepower Rating 800
  • Hub Style Solid
  • Make Chevrolet
  • Number of Discs Double
  • Pilot Bushing Included No
  • Pilot Bushing Material N/A
  • Pressure Plate Style Diaphragm
  • Ring Gear 168 tooth
  • Spline 1 1/8 x 26
  • Throwout Bearing Included No
  • Throwout Bearing Style Hydraulic

Fitments

  • RST:Steel Flywheel:Chevy: LS-X 6 Bolt Crank:0Bal:168T:1-1/8x26 GMC: Canyon 09-12 5.3 L Engine, GMC: Sierra 3500 01-06 6 L Engine, GMC: Sierra 2500 99-00 5.3 L Engine, GMC: Sierra 1500 99-06 5.3 L Engine, Chevrolet: Silverado 3500 Classic 07-07 6 L Engine, Chevrolet: Silverado 2500 HD Classic 07-07 6 L Engine, GMC: Sierra 2500 99-04 6 L Engine, GMC: K3500 99-00 5.7 L Engine, Chevrolet: SSR 05-06 6 L Engine, Chevrolet: Silverado 3500 01-06 6 L Engine, GMC: C3500 99-00 5.7 L Engine, Chevrolet: Silverado 2500 HD 01-06 6 L Engine, GMC: Sierra 1500 04-05 6 L Engine, Chevrolet: Camaro 10-15 6.2 L Engine, GMC: Sierra 1500 Classic 07-07 5.3 L Engine, Chevrolet: Camaro 98-02 5.7 L Engine, GMC: Sierra 3500 Classic 07-07 6 L Engine, Pontiac: Firebird 98-02 5.7 L Engine, Pontiac: GTO 04-04 5.7 L Engine, Chevrolet: Corvette 97-04 5.7 L Engine, Chevrolet: Corvette 05-07 6 L Engine, GMC: Sierra 2500 HD 01-06 6 L Engine, Chevrolet: Camaro 14-15 7 L Engine, Chevrolet: Silverado 1500 HD 02-02 6 L Engine, GMC: K2500 99-00 5.7 L Engine, Chevrolet: Corvette 06-13 7 L Engine, GMC: C2500 99-00 5.7 L Engine, Pontiac: GTO 05-06 6 L Engine, GMC: P3500 99-99 5.7 L Engine, Chevrolet: Corvette 08-13 6.2 L Engine, Chevrolet: Silverado 2500 99-04 6 L Engine, Pontiac: G8 09-09 6.2 L Engine, Chevrolet: K2500 99-00 5.7 L Engine, Cadillac: CTS 04-05 5.7 L Engine, Cadillac: CTS 06-07 6 L Engine, Chevrolet: C2500 99-00 5.7 L Engine, Chevrolet: C3500 99-00 5.7 L Engine, GMC: Sierra 2500 HD Classic 07-07 6 L Engine, Chevrolet: K3500 99-00 5.7 L Engine, Chevrolet: Silverado 1500 04-04 6 L Engine, Chevrolet: P30 99-99 5.7 L Engine

McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor, McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor, McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor, McLeod RST Twin Disc Clutch Kit Steel Flywheel 6-Bolt LS Motor

Vehicle Fitment

Please verify year, make, model, and any notes before ordering.

Engine Compatibility

GM - LSMatched variant: LS

GM Gen III/IV V8; LS1/LS2/LS3/LS6/LS7/LS9/LSA/LSX

Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.

Product Specs

Brand
McLeod Racing
Part Number
6405507
Catalog Number
00834820
Product Line
Clutch Kits - Multi
Category
Transmission
Type
Clutch Kits - Multi
UPC / Barcode
887753012265
Vendor Product Category
Drivetrain
Vendor Product Subcategory
Clutch Kits - Multi
Box Length
16.80 in
Box Width
16.20 in
Box Height
5.90 in
Ship Weight
48.50 lb
Units Per SKU
1
Freight / LTL
No
Ship Alone
No
Air Restricted
No
Hazmat
No
Chemical
No
Prop 65
Unknown
CARB Approved
Yes
Clearance Item
No
Non-Returnable
No
Case Quantity
1
Kit
No
