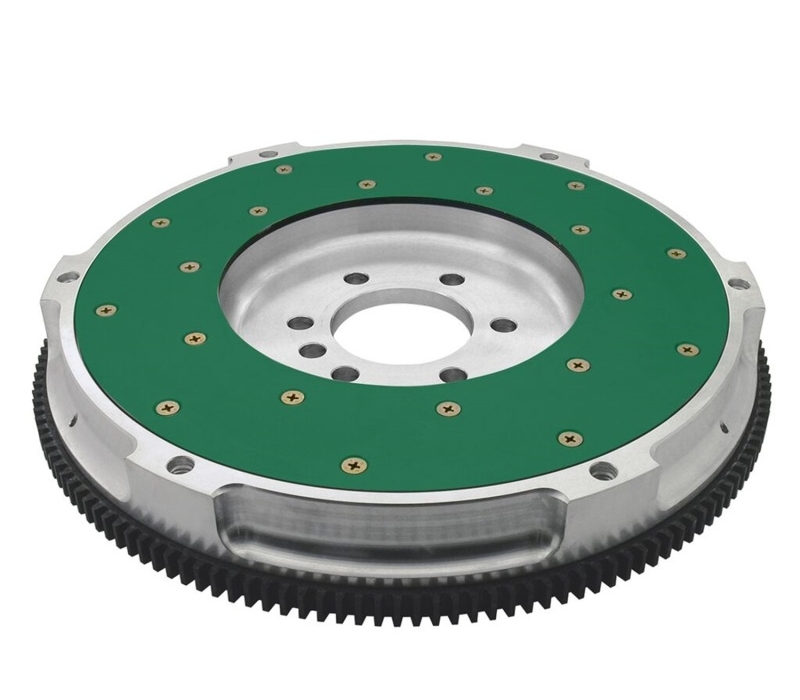

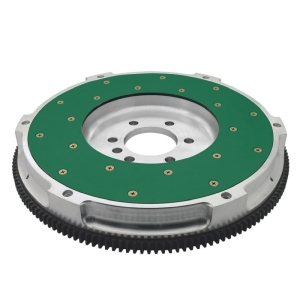

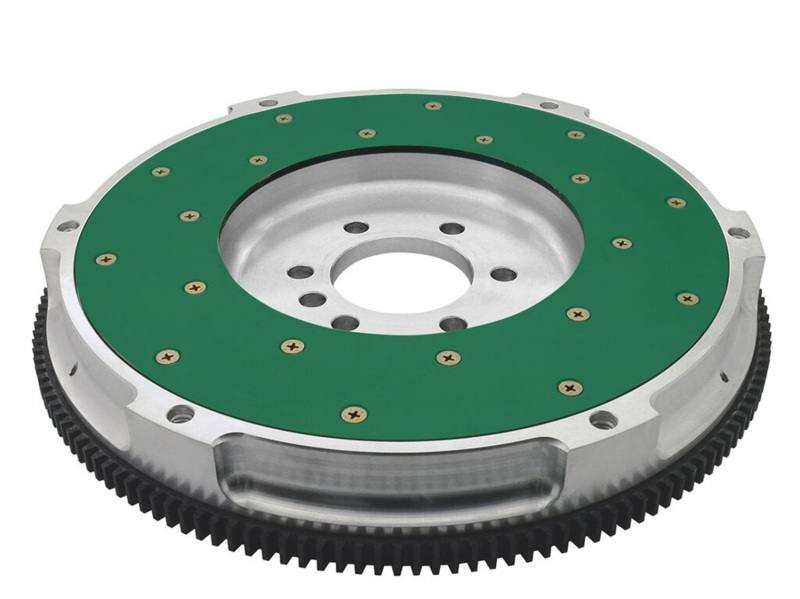

Fidanza Chevrolet Corvette Chevy V8 Aluminum Flywheel
* Images may be a representation and may not reflect the actual product.
Product Details
Aluminum Flywheel 153T Ring Gear To Mount Corvette ZF 6 Speed To 2 Piece Rear Main Engine.
Fidanza 55-86 Chevrolet V8 Aluminum Flywheel (Mount Corvette ZF 6-Speed to 2pc Rear Mail)
Fidanza aluminum flywheels from LMPerformance are made from the highest quality 6061 T6 aluminum. The material is fantastic for strength, heat dissipation and of course reduction in weight.
Fidanza Aluminum Flywheels Feature:- MAIN BODY-6061 T6 ALUMINUM Tolerances machined to +/- .001 6061 T6 has an ultimate tensile strength of at least 42, 000 psi and a yield strength of at least 35, 000 psi.
- RING GEAR-1050 STEEL / HEAT TREATED Heat treated for durability. The gears are heated then pressed on and secured with grade 8 button screws.
- REPLACEABLE FRICTION PLATE-1045 STEEL The friction surface we use is an incredibly strong 1045 steel. The plates are milled to meet our high specifications. With these replaceable plates there is no need to replace the entire flywheel when the clutch or flywheel is at the end of it’s life, saving time and money.
- BUTTON SCREWS-GRADE 8 Increased security helping fasten the ring gear to the flywheel.
- FASTENERS-MILITARY SPEC Military grade aerospace fasteners aid in pulling heat away from the clutch face. Properly spaced for form and function.
- STEPPED DOWELS-STEEL Once pressure plate is installed they become locked in place. First in the industry to implement the use of stepped dowels.
Rotation is our motivation. We want you and yourvehicle to feel that motivation because it createsmotion. And by motion, we mean motion of the rightnow, immediate, accelerated variety. Discover for yourself. Swap your anchor of a stock flywheel for our lightenedaluminum flywheel. You’ll see why we’ve become the leader inlightweight aluminum flywheel sales. Our aluminum flywheels arelighter, stronger and serviceable, not to mention we have over 300different applications. No other manufacturer can hold a match to that, let alone a flywheel. How do we do it? We make quality our top priority. We use the best materials, like6061 T6 aluminum, 1050 high carbon steel and aerospace fasteners. If there was a betterway, we would be doing it. Less Stress is put on the crankshaft of the engine, resulting in prolonged life. No more wasted horsepower!
Attention: All applications are listed using the very best sources available. The end user must verify fitment before installation.
Additional Information:
- Engine: Chevy V8
- Fitment Notes: to Mount Corvette Zf 6-spd To 2 Pc Rear Main Seal Engine, 153 Rg
- Flywheel Weight: 13.5
- Install Notes: for 383 Or 400 C.i.d. Engine Must Use Part #624001 Balance Plate. For 454 C.i.d. Engine Must Use Part #624541 Balance Plate, For 502 C.i.d. Engine Must Use Part #625021 Balance Plate
Fidanza 55-86 Chevy V8 Aluminum Flywheel (To mount Corvette ZF 6spd to 2pc Rear Mail Seal)
Vehicle Fitment
Please verify year, make, model, and any notes before ordering.
- 1955-1986Chevrolet Corvette
Product Specs
- Brand
- Fidanza
- Part Number
- 198761
- Catalog Number
- 00663698
- Product Line
- Aluminum Flywheels -Domestic
- Category
- Transmission
- Type
- FlyWheels
- Vendor Product Category
- Drivetrain
- Vendor Product Subcategory
- Flywheels
- Box Length
- 15.00 in
- Box Width
- 15.00 in
- Box Height
- 2.50 in
- Ship Weight
- 13.50 lb
- Units Per SKU
- 1
- Freight / LTL
- No
- Air Restricted
- No
- Prop 65
- Y
- CARB Approved
- Yes
- Clearance Item
- No
Shipping & Availability
This item ships from FIDANZA in approximately 0-4 months time.
