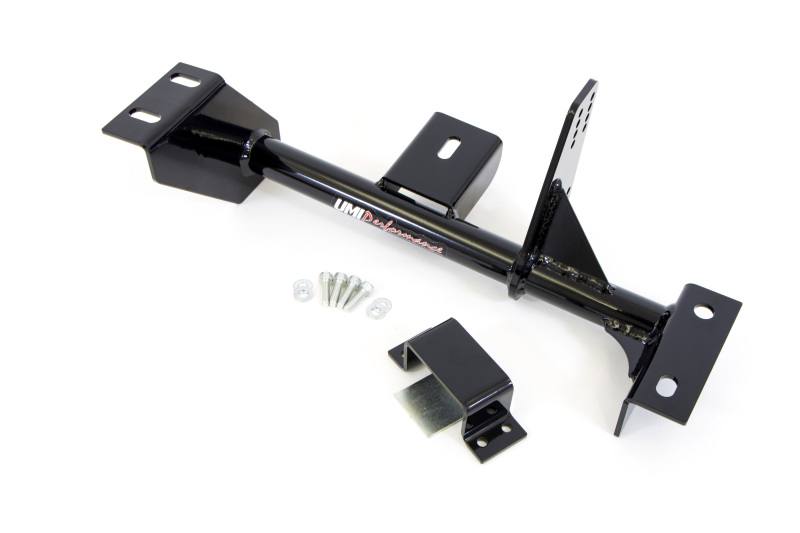

UMI Performance 98-02 GM F-Body Torque Arm Relocation Kit - 4L80E
* Images may be a representation and may not reflect the actual product.
Product Details
The torque arm relocation kit from UMI is designed to remove the front mounting point of the torque arm off the transmission and protect the tail shaft from damage. General Motors tail shaft mounted design works great for a stock driven vehicle however it is not designed to take abuse and hard launches. This setup replaces your transmission cross member with a new stronger cross member with a built in torque arm mount. The relocation kit is designed to fit the heavy duty GM 4L80E transmission and will work with virtually any stock style aftermarket torque arm as well as the factory torque arm (Must use bushing #3004 to use a stock torque arm). This unit is built using USA steel tubing, 3/16” mild steel mounting plates and includes all necessary hardware needed for the installation. The torque arm mount is laser cut from 1/4” thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. Please use the FAQ’s below for additional information. Note: When running a factory torque arm you must purchase #3004 bushing below.
UMI Performance 98-02 GM F-Body Torque Arm Relocation Kit - 4L80E, UMI Performance 98-02 GM F-Body Torque Arm Relocation Kit - 4L80E
A: This kit is 100% bolt in and requires no drilling, no cutting and no welding. It bolts in place of the stock cross member using the existing holes. Note: This product must be used with a solid one-piece polyurethane bushing. It will not work with the factory bushing that utilizes a two-piece design. If using a stock torque arm with this relocation kit an aftermarket polyurethane bushing must be purchased. This item can be purchased below, Item # 3004.*
UMI Performance 98-02 GM F-Body Torque Arm Relocation Kit - 4L80E
1998-2002 GM F-Body Torque Arm Relocation Kit – 4L80E
Relocation Bracket
Relocation Bracket
UMI Performance 98-02 GM F-Body Torque Arm Relocation Kit - 4L80E, UMI Performance 98-02 GM F-Body Torque Arm Relocation Kit - 4L80E
Vehicle Fitment
Please verify year, make, model, and any notes before ordering.
- 1998-2002Chevrolet Camaro
- 1998-2002Pontiac Firebird
Product Specs
- Brand
- UMI Performance
- Part Number
- 2237-b
- Catalog Number
- 001588758
- Product Line
- Transmission Crossmembers
- Category
- Chassis Components
- Type
- Crossmembers
- UPC / Barcode
- 2237-B
- Vendor Product Category
- Drivetrain
- Vendor Product Subcategory
- Crossmembers
- Length
- 24.20 in
- Width
- 12.50 in
- Height
- 8.70 in
- Weight
- 11.80 lb
- Units Per SKU
- 1
- Freight / LTL
- No
- Air Restricted
- No
- Prop 65
- Y
- CARB Approved
- Yes
- Clearance Item
- No
Shipping & Availability
This item is fulfilled directly by the manufacturer/vendor and never stocked. Estimated ship times may vary.
PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
UMI Performance warrants all UMI Performance products for a period of two (2) years from the original date of purchase.
This warranty is valid against defects in materials and workmanship for the two (2) year warranty period. It is not valid against defect resulting from, but not limited to:
Misuse and/or abuse, neglect or accident.
Exceeding the items design limits.
Improper installation.
Acts of God, including lightning, floods, earthquakes, fire or high winds.
Damage in handling, including damage encountered during shipment.
This warranty is valid for the original purchaser of the UMI Product. Warranty is not transferable or valid for second ownership.
This warranty shall be considered void if the warranted product is in any way altered, adjusted, tampered with or defaced.
The two (2) year warranty does not apply to normal wear and tear (the gradual deterioration of an asset which results naturally from use and/or age, i.e. bearings, bushings, etc.).
Non UMI manufactured parts are not covered or valid under this UMI Performance warranty.
UMI Performance cannot guarantee compatibility or performance of its products with other components used in conjunction with UMI Performance products.
UMI Performance cannot assume responsibility for any damages to UMI Products nor for claims for personal injury or property damage resulting from the use of UMI Performances products or the improper operation thereof or consequential damages arising from the products or use of the products.
UMI Performance two (2) year warranty excludes incidental charges incurred by the end user in the event of breakage (towing, labor, installation, etc.). By their very nature, competition suspension parts are continuously expected to exceed to their limits (either by race or road use). UMI suspension components are designed to withstand intense race conditions, although it is impossible to control the quality of installation or the varying conditions in which they are used.
This warranty supersedes all other warranties and may only be modified by statement in writing, signed by UMI Performance owners/principals.
All Warranties implied by law, including the warranties of merchantability and fitness for a particular purpose, are hereby limited to the warranty period herein and shall expire at the end of such period.
