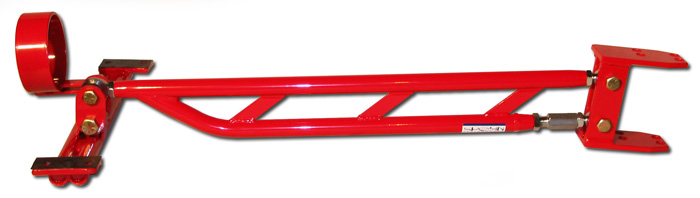

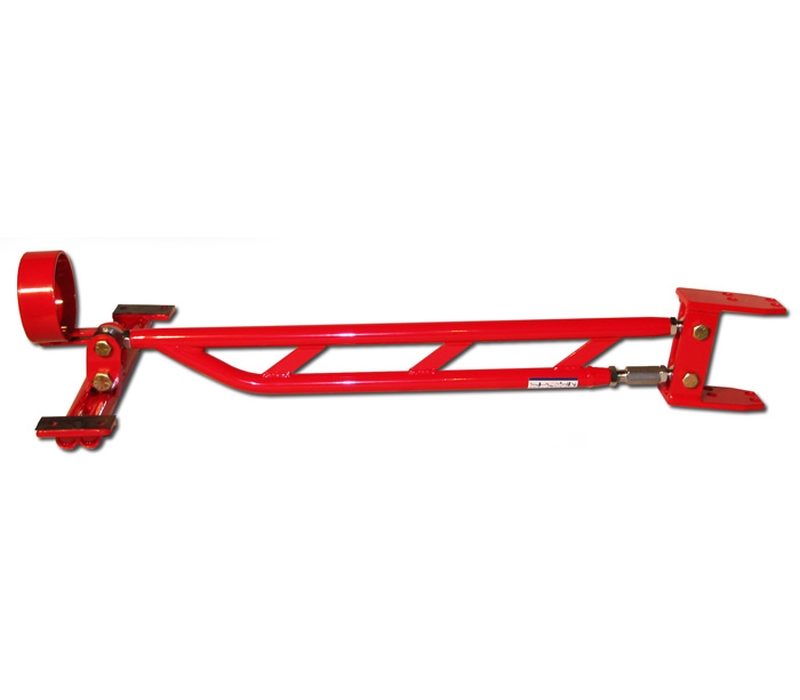

Spohn Adj. Torque Arm - LS1 Camaro V8
* Images may be a representation and may not reflect the actual product.
Often Purchased with this Suspension Arms & Component
Product Details
Spohn Adj. Torque Arm - LS1 Camaro V8, Spohn Adj. Torque Arm - LS1 Firebird V8
This crossmember mounted adjustable torque arm for the 1993-2002 F-Body is for vehicles not running long tube headers/y-pipe set ups. This crossmember has been designed for use with vehicles running the stock y-pipe, or shorty headers/y-pipe, or aftermarket y-pipes that connect to the OEM exhaust manifolds that do not need the extra exhaust clearance that is provided on our long tube version torque arm kit. This kit is perfect for lowered vehicles as it provides for minimal ground clearance loss.
The only exception to the above is for cars equipped with Mac mid-length headers and y-pipe combination or the Kook's long tube headers and the Kook's y-pipe. The Mac and Kook's header/y-pipe set up will work with this straight across crossmember. The option below for a driveshaft loop only applies to cars equipped with the Mac mid-length or Kook's headers and y-pipe.
Driveshaft Loop(s) Option: Only choose a driveshaft loop(s) if your car is equipped with the Kook's headers and Kook's y-pipe, or the Mac mid-length headers and y-pipe. Cars equipped with the factory, or a manifold connected factory style y-pipe (ie. SLP), the y-pipe will not clear the front loop.
NOTE: Do not get a rear driveshaft safety loop if your car is lowered, or if you have an SLP Loud-Mouth cat-back exhaust system.
If you want serious performance, handling, and traction when you're at the dragstrip, AutoX, or road racing; then you need a Spohn Performance fully adjustable torque arm, here's what it'll do:
- Attaches to the rear axle and controls rear end torque during acceleration, transferring this energy into the tires, increasing straight line traction Reduces nose-dive during braking Eliminates wheelhop Increases sidebite during corner exit acceleration Bolt-on system does not require complete interior removal as with other kits No fabrication, welding or drilling required - 100% bolt-in installation! Removes the torque arm pivot point from the rear of the transmission to the supplied crossmember Changes the instantaneous center and leverage point from stock Provides adjustable pinion angle Poly version utilizes polyurethane front mount to keep noise at a minimum Rod ended version utilizes a QA1 extra high strength, chrome moly spherical rod end with Teflon�/Kevlar� self lubricating race for those who demand the best in bind-free performance and strength
Spohn Adj. Torque Arm - LS1 Firebird V8
Spohn Adj. Torque Arm - LS1 Camaro V8, Spohn Adj. Torque Arm - LS1 Firebird V8
Spohn Adj. Torque Arm - LS1 Camaro V8, Spohn Adj. Torque Arm - LS1 Firebird V8
This crossmember mounted adjustable torque arm for the 1993-2002 F-Body is for vehicles not running long tube headers/y-pipe set ups. This crossmember has been designed for use with vehicles running the stock y-pipe, or shorty headers/y-pipe, or aftermarket y-pipes that connect to the OEM exhaust manifolds that do not need the extra exhaust clearance that is provided on our long tube version torque arm kit. This kit is perfect for lowered vehicles as it provides for minimal ground clearance loss.
The only exception to the above is for cars equipped with Mac mid-length headers and y-pipe combination or the Kook's long tube headers and the Kook's y-pipe. The Mac and Kook's header/y-pipe set up will work with this straight across crossmember. The option below for a driveshaft loop only applies to cars equipped with the Mac mid-length or Kook's headers and y-pipe.
Driveshaft Loop(s) Option: Only choose a driveshaft loop(s) if your car is equipped with the Kook's headers and Kook's y-pipe, or the Mac mid-length headers and y-pipe. Cars equipped with the factory, or a manifold connected factory style y-pipe (ie. SLP), the y-pipe will not clear the front loop.
NOTE: Do not get a rear driveshaft safety loop if your car is lowered, or if you have an SLP Loud-Mouth cat-back exhaust system.
If you want serious performance, handling, and traction when you're at the dragstrip, AutoX, or road racing; then you need a Spohn Performance fully adjustable torque arm, here's what it'll do:
- Attaches to the rear axle and controls rear end torque during acceleration, transferring this energy into the tires, increasing straight line traction
- Reduces nose-dive during braking
- Eliminates wheelhop
- Increases sidebite during corner exit acceleration
- Bolt-on system does not require complete interior removal as with other kits
- No fabrication, welding or drilling required - 100% bolt-in installation!
- Removes the torque arm pivot point from the rear of the transmission to the supplied crossmember
- Changes the instantaneous center and leverage point from stock
- Provides adjustable pinion angle
- Poly version utilizes polyurethane front mount to keep noise at a minimum
- Rod ended version utilizes a QA1 extra high strength, chrome moly spherical rod end with Teflon�/Kevlar� self lubricating race for those who demand the best in bind-free performance and strength
Spohn Adj. Torque Arm - LS1 Camaro V8, Spohn Adj. Torque Arm - LS1 Firebird V8
Vehicle Fitment
Please verify year, make, model, and any notes before ordering.
- 1998-2002Chevrolet Camaro
- 1998-2002Pontiac Firebird
Product Specs
- Brand
- Spohn Performance
- Part Number
- 402
- Catalog Number
- 0015598
- Product Line
- Suspension Arms & Components
- Category
- Suspension
- Type
- Suspension Arms & Components
