Holley

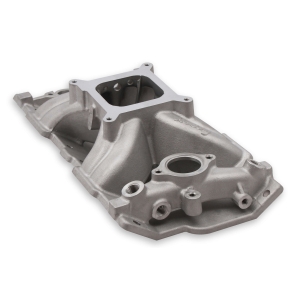

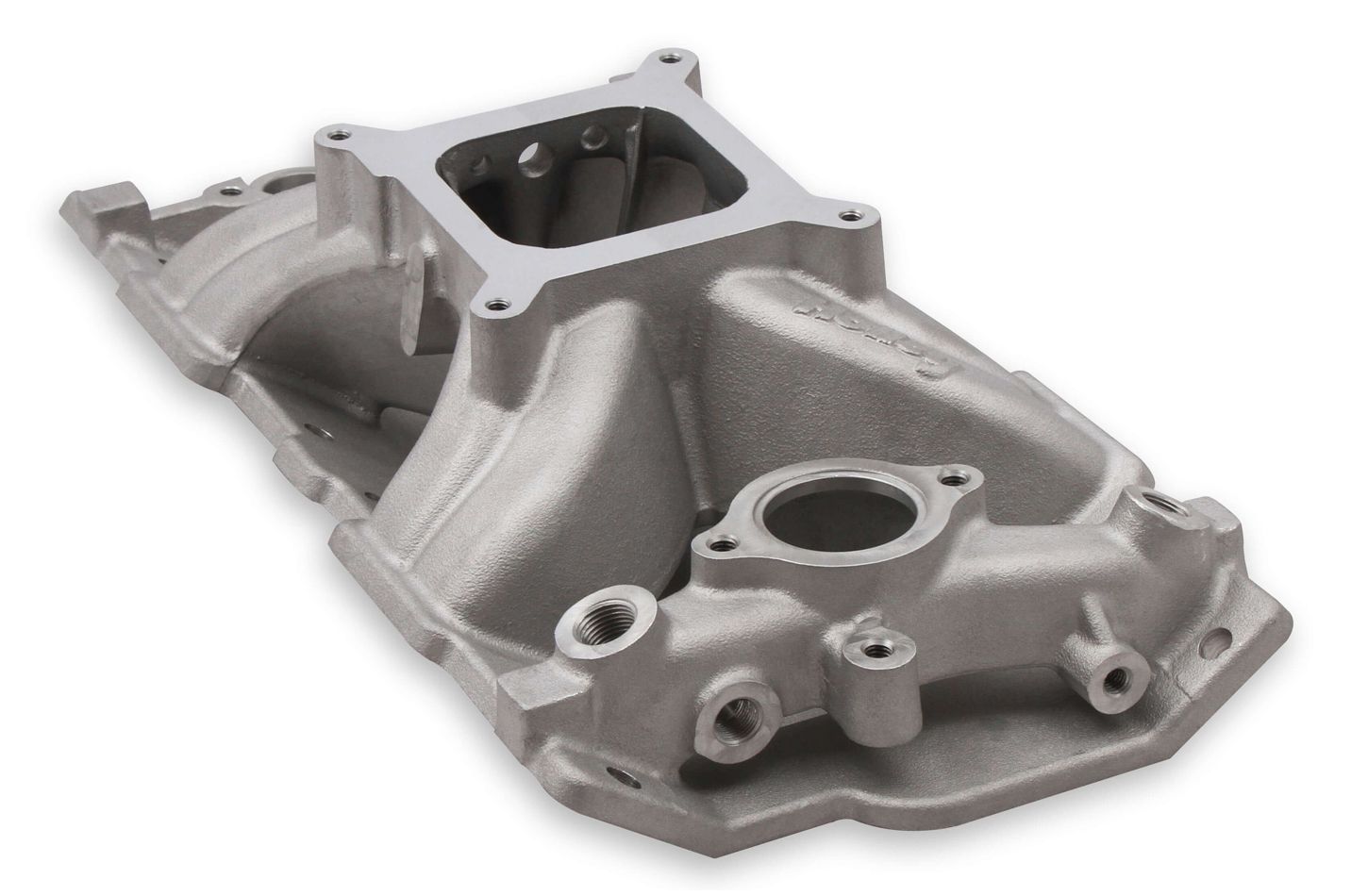

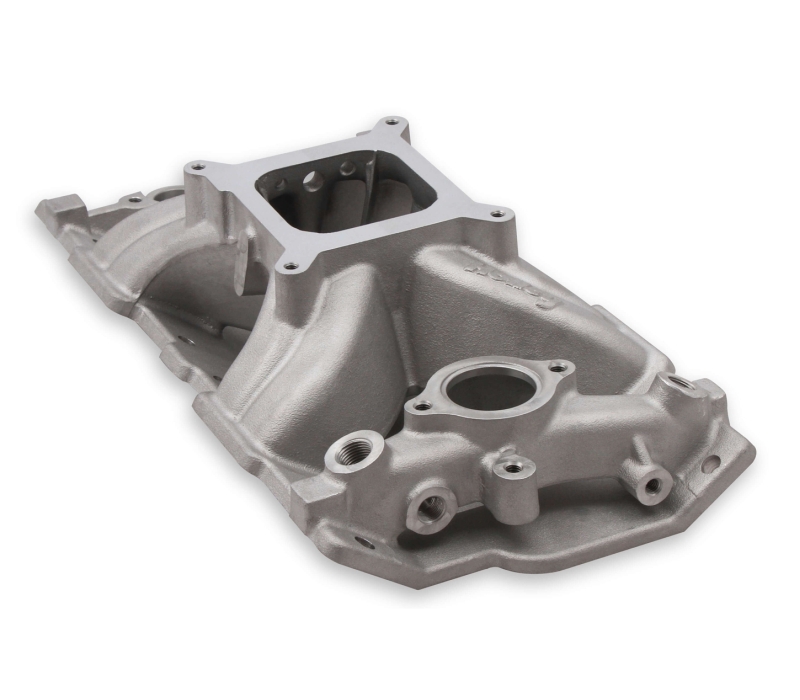

HOLLEY SBC Single Plane Intake Manifold w/4150 Flange
* Images may be a representation and may not reflect the actual product.
Product Details
Intake Manifold - Single-Plane - Square Bore - Single Plane - Aluminum - Natural - Small Block Chevy - Kit
Intake Manifold-Single-Plane-Square Bore-Single Plane-Aluminum-Natural-Small Block Chevy-Kit
Single Plane Intake Manifold Kit; Upper; Square Bore Carb Mounting Flange; 2500-7500 RPM; Front 4.18 in./Rear 5.28 in. Height; 1.92 in. H/1.20 in. Wi Port Size;
The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1 shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations.
DETAILS:
- Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle
- Engine Intake Manifold
- Single Plane Intake Manifold Kit
- Isolated Water Cross-Over
- Power Band 2500-7500 RPM
- Single Plane With Isolated Plenum
- Square Bore Carburetor Mounting Flange
- SBC CARB SINGLE PLANE INTAKE MANIFLD KIT
- Intake Manifold
Part Number 300-261 SPECS:
- Barrel: Four
- Construction: Cast
- Cylinder Head Type: Standard
- Emission: N/A
- Engine Make/Size: Chevy Small Block V8
- Finish: Satin
- Front Height: 4.180 in.
- Fuel System Type: Carb
- Manifold Type: High Rise
- Number of Carbs: One
- Position: Upper
- Rear Height: 5.280 in.
- RPM Range: 2500-7500
- Usage: Racing
- WARNING CA Proposition 65: No
Vehicle Fitment
Please verify year, make, model, and any notes before ordering.
- 1957-1991Chevrolet Corvette
Engine Compatibility
Small Block Chevy; 265–400ci
Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.
Product Specs
- Brand
- Holley
- Part Number
- 300-261
- Catalog Number
- 001509484
- Product Line
- Intake Manifolds
- Category
- Air Induction
- Type
- Intake Manifolds
- UPC / Barcode
- 090127052136
- Box Length
- 25.20 in
- Box Width
- 12.35 in
- Box Height
- 7.25 in
- Ship Weight
- 16.18 lb
- Ship Alone
- No
- Air Restricted
- No
