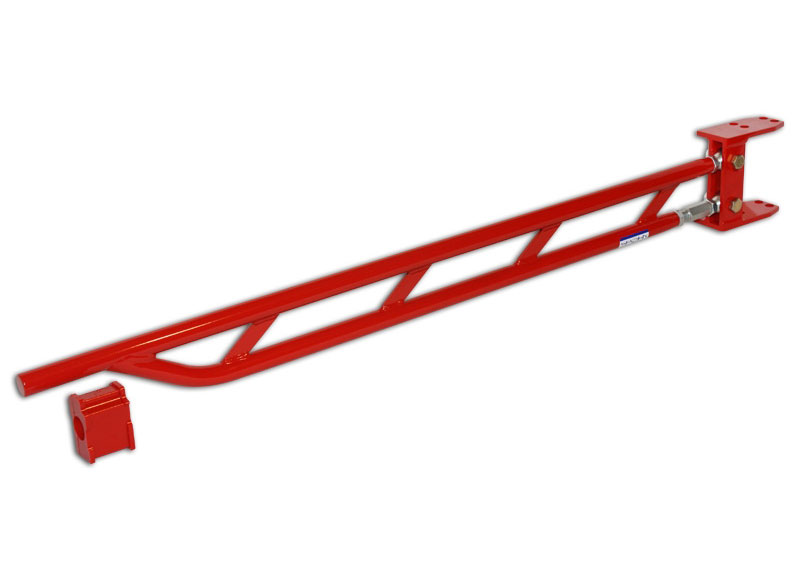

Spohn Adj. Torque Arm - Trans. Mounted Camaro V8

MPN: 399 Catalog #: 003816 Category: Suspension Arms & Components Check Vehicle Fitment

Product Details

Spohn Adj. Torque Arm - Trans. Mounted Camaro V8, Spohn Adj. Torque Arm - Trans. Mounted Camaro V8, Spohn Adj. Torque Arm - Trans. Mounted Firebird V8, Spohn Adj. Torque Arm - Trans. Mounted Firebird V8

Full length transmission mounted adjustable torque arm for the 1982-2002 F-Body.

Replace your flimsy factory torque arm with a durable Spohn tubular version and put the power where it belongs - the pavement! Built from 1.25 x .120 tubing with a heavy-duty 3/8 rear mounting bracket. Bolts directly in place of factory torque arm using all factory mounting locations. Requires no welding or drilling and clears all factory or aftermarket exhausts. Equipped with an adjuster for changing pinion angle and a new, low deflection polyurethane front bushing.

If you want serious performance, handling, and traction when you're at the dragstrip, AutoX, or road racing; then you need a Spohn Performance fully adjustable torque arm, here's what it'll do:

Build Specifications:

  • Constructed of 1.25 o.d. x .120 wall DOM (drawn over mandrel) seamless mild steel tubing Front stub of torque arm is reinforced by TIG welding a piece of 1 solid 4140 chrome moly into the i.d. of the front snub. This is the strongest transmission mounted torque arm on the market = bullet-proof!
  • TIG welded 4130 chrome moly threaded tube adapters
  • Heavy-duty 3/8 thick steel rear housing mounting plates
  • Polyurethane bushing front mount for minimal road noise
  • Grade 8 mounting hardware is supplied
  • Front torque arm polyurethane bushing mount allows for fore and aft travel, as well as free rotational travel for bind-free performance
  • Rear of torque arm mounts to the 3/8 thick steel rear housing mounting plates via two 3/4-16 NFT x 5/8 bore x 7/8 thick solid steel rod ends. These are solid rod ends, not spherical bearing rod ends, so noise is of no concern. Grade 8 - 5/8 bolts and 5/8 nylock nuts are supplied.
  • Integral Pinion Angle Adjuster between the bottom rear solid rod end and the bottom rear torque arm tube allows for easy pinion angle adjustment. A simple turn of the wrench will give you 6 degrees of pinion angle adjustment, it's that simple.
  • Entire package is a complete bolt-in assembly using existing mounting points on the vehicle. No drilling or welding is required!
  • This is a proven product being run on some of the fastest F-Bodies in the country!
  • Rear mounting bracket is designed to fit on the OEM rear or an aftermarket 12 bolt or Ford 9 rear
  • Available powder coated red or black.

1982–1992 Spohn Adj. Torque Arm - Trans. Mounted Camaro V8

Spohn Adj. Torque Arm - Trans. Mounted Firebird V8

If you want serious performance, handling, and traction when you're at the dragstrip, AutoX, or road racing; then you need a Spohn Performance fully adjustable torque arm, here's what it'll do:

  • Attaches to the rear axle and controls rear end torque during acceleration, transferring this energy into the tires, increasing straight line traction
  • Reduces nose-dive during braking
  • Eliminates wheelhop
  • Increases sidebite during corner exit acceleration
  • Bolt-on system does not require complete interior removal as with other kits
  • No fabrication, welding or drilling required - 100% bolt-in installation!
  • Provides adjustable pinion angle

Build Specifications:

  • Constructed of 1.25 o.d. x .120 wall DOM (drawn over mandrel) seamless mild steel tubing
  • Front stub of torque arm is reinforced by TIG welding a piece of 1 solid 4140 chrome moly into the i.d. of the front snub. This is the strongest transmission mounted torque arm on the market = bullet-proof!
  • TIG welded 4130 chrome moly threaded tube adapters
  • Heavy-duty 3/8 thick steel rear housing mounting plates
  • Polyurethane bushing front mount for minimal road noise
  • Grade 8 mounting hardware is supplied
  • Front torque arm polyurethane bushing mount allows for fore and aft travel, as well as free rotational travel for bind-free performance
  • Rear of torque arm mounts to the 3/8 thick steel rear housing mounting plates via two 3/4-16 NFT x 5/8 bore x 7/8 thick solid steel rod ends. These are solid rod ends, not spherical bearing rod ends, so noise is of no concern. Grade 8 - 5/8 bolts and 5/8 nylock nuts are supplied.
  • Integral Pinion Angle Adjuster between the bottom rear solid rod end and the bottom rear torque arm tube allows for easy pinion angle adjustment. A simple turn of the wrench will give you 6 degrees of pinion angle adjustment, it's that simple.
  • Entire package is a complete bolt-in assembly using existing mounting points on the vehicle. No drilling or welding is required!
  • This is a proven product being run on some of the fastest F-Bodies in the country!
  • Rear mounting bracket is designed to fit on the OEM rear or an aftermarket 12 bolt or Ford 9 rear
  • Available powder coated red or black.

Spohn Adj. Torque Arm - Trans. Mounted Camaro V8, Spohn Adj. Torque Arm - Trans. Mounted Camaro V8, Spohn Adj. Torque Arm - Trans. Mounted Firebird V8, Spohn Adj. Torque Arm - Trans. Mounted Firebird V8

Vehicle Fitment

Please verify year, make, model, and any notes before ordering.

Product Specs

Brand
Spohn Performance
Part Number
399
Catalog Number
003816
Product Line
Suspension Arms & Components
Category
Suspension
Type
Suspension Arms & Components

Shipping & Availability

Current status Made to Order
Estimated timing Usually ships in 0-2 weeks

This item is usually built or fulfilled by the manufacturer and ships from PA.
