Edelbrock

Edelbrock 15-17 Ford Coyote Pro-Flo 4+ EFI Engine Management System

MPN: 36160 Catalog #: 002002350 Category: Fuel Injection Control Modules Check Vehicle Fitment

Product Details

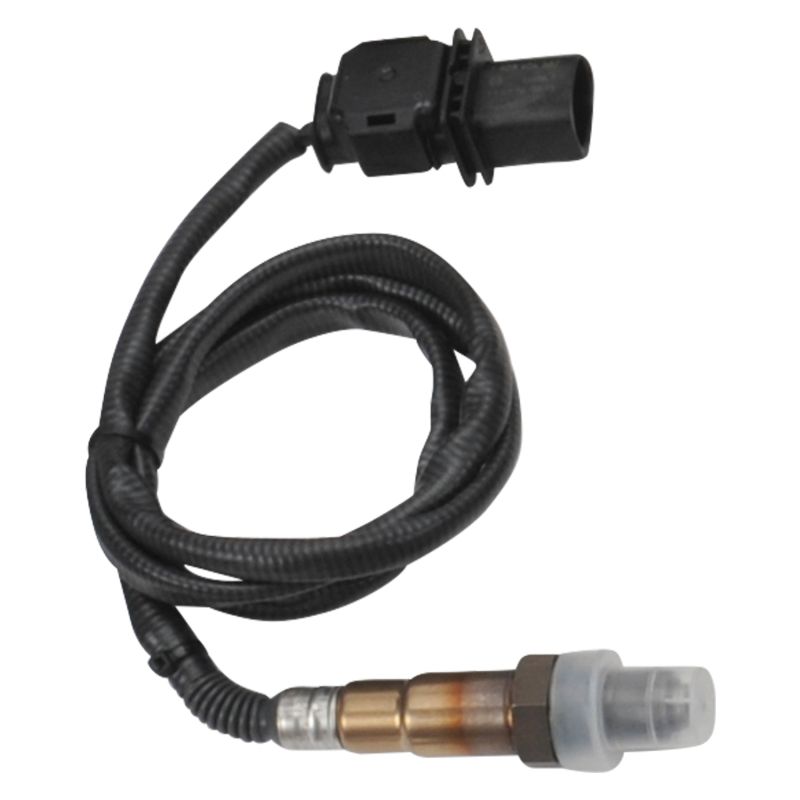

MAP, O2 and IAT sensors. The compact Pro-Flo 4+ ECU provides mounting versatility with a weather-resistant housing and features a unique self-learning capability that adjusts the fuel map as you drive, providing optimum performance with no need for laptop tuning or costly dyno sessions. Setup is quick and easy thanks to Edelbrock's E-Tuner 4 software for Android tablets and smartphones. Pro-Flo 4+ for the 2015-2017 Coyote uses a speed-density fueling strategy with an included MAP and IAT sensor. A non-adjustable Alternator Control is set to regulate at 14.5 volts. The Coyote's factory MAF sensor, air inlet piping and air box are eliminated, allowing unlimited configuration of your air intake design. Pro-Flo 4+ #36160 works with 80mm drive-by-wire throttle bodies as well as the 87mm GT350 throttle body. Minimal tuning adjustments are required when the provided base calibration is used, giving you great performance right out of the box. The Pro-Flo 4+ EFI Engine Management System is covered by a 2-year warranty and is backed by the industry's most extensive technical support team.

Edelbrock Pro-Flo 4+ kit #36160 is an EFI engine management system that greatly simplifies the process of installing a 2015-2017 Ford Coyote EFI engine into a non-EFI muscle car, truck or hot rod. Pro-Flo 4+ allows you to leave the factory ECU and wiring harnesses at the junkyard by providing a plug-and-play control system that is specially designed for the Gen II Coyote engine, implementing drive-by-wire throttle and variable camshaft timing (VCT) in hot rod engine swap applications. Pro-Flo 4+ kit #36160 includes an ECU with base calibration

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Engine Compatibility

Ford - CoyoteMatched variant: Coyote

5.0L V8; Mustang GT Gen1/2/3, F-150

Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.

Product Specs

Brand
Edelbrock
Part Number
36160
Catalog Number
002002350
Product Line
EDE EFI System
Category
Fuel Delivery
Type
Fuel Injection Control Modules
UPC / Barcode
085347361601
Vendor Product Category
Fuel Delivery
Vendor Product Subcategory
Fuel Injection Control Modules
Length
0.10 in
Width
0.10 in
Height
0.10 in
Weight
0.10 lb
Units Per SKU
1
Freight / LTL
No
Air Restricted
No
Prop 65
Unknown
CARB Approved
No
Clearance Item
No

Shipping & Availability

Current status 35 Available - Ready to ship
Estimated timing Ships from factory

This item is showing manufacturer availability and may ship directly from the manufacturer. Tracking details are provided as soon as they become available. ETA 0-5 Days to ship.

STATE RESTRICTIONS: This item is not CARB approved and can not ship to California.

PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Inventory shown: 35 available as of 6/3/2026.
