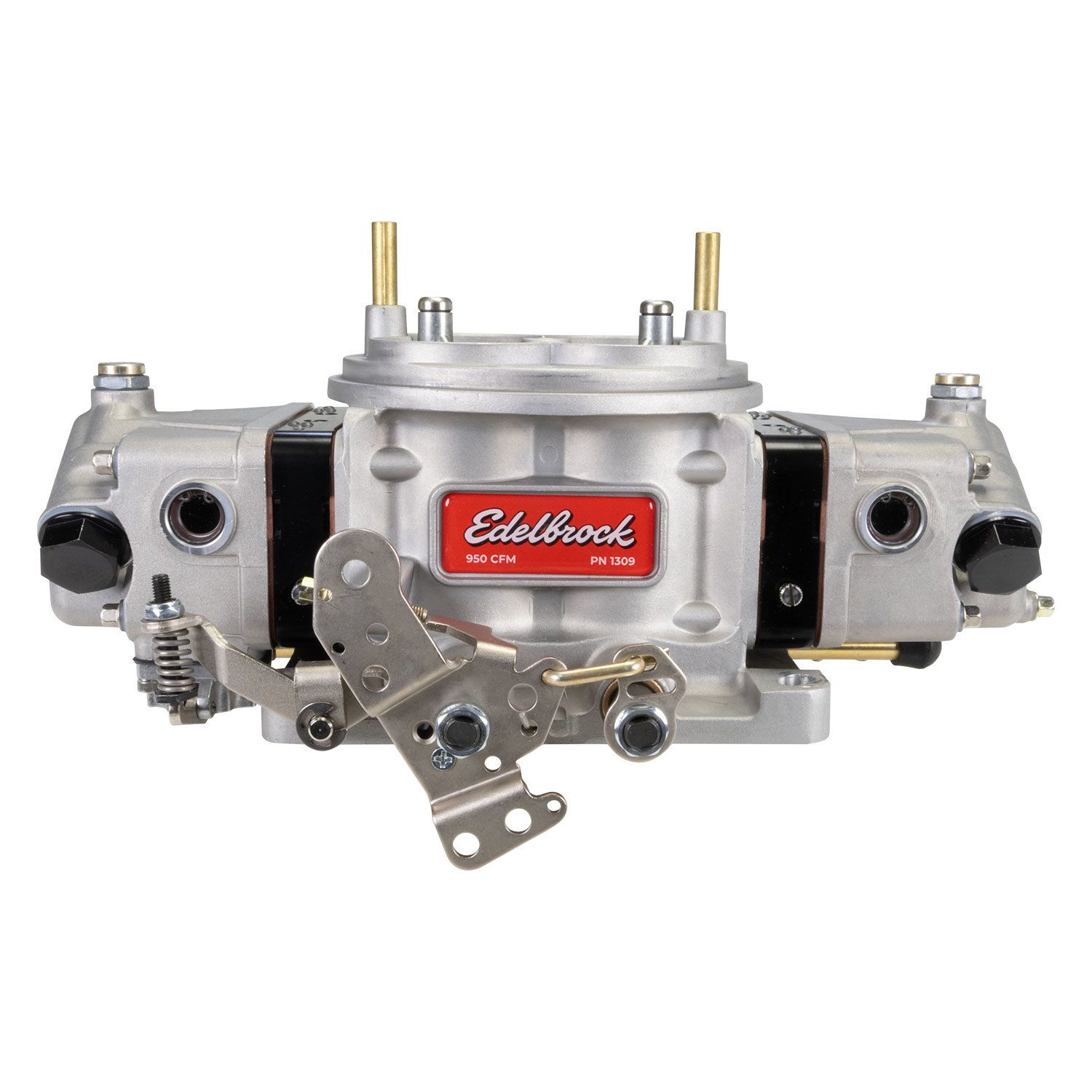

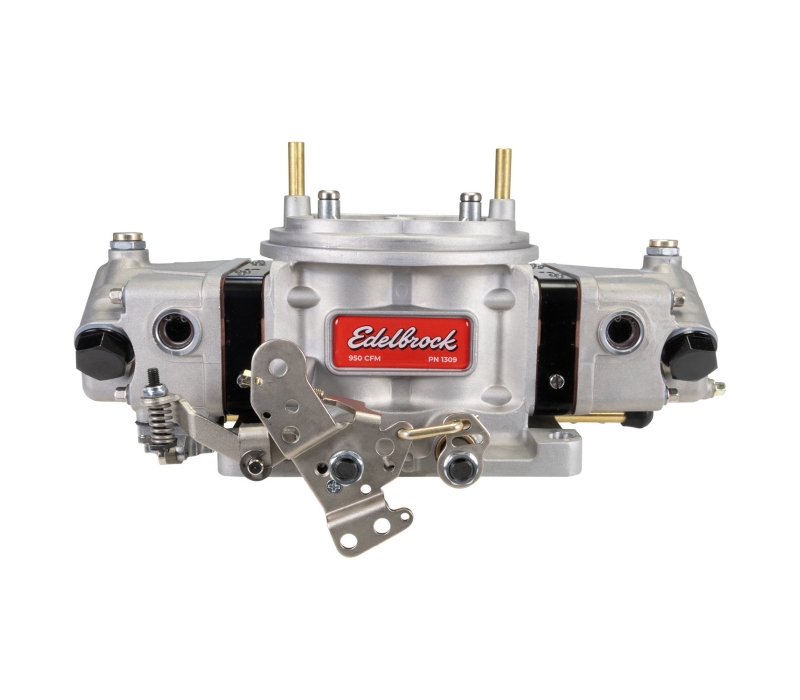

Edelbrock VRS4150 E85 Carb 950CFM Satin Finish

MPN: 1309e85 Catalog #: 001881109 Category: Carburetors Check Vehicle Fitment

Product Details

Carburetor - VRS-4150 - Model 4150 - 4-Barrel - 950 CFM - Square Bore / Dominator Flange - No Choke - Mechanical Secondary - Dual Inlet - Aluminum - Black Anodized / Natural - E85 - Each

Edelbrock VRS-4150 Race & Performance Carburetor PN 1309-E85 has features that benefit racers and high-performance street enthusiasts running E-85 fuel. Custom metering blocks and extra-large fuel jets specifically built for E-85 applications. Annular boosters provide superior air-fuel mixing for exceptional performance. The 20% larger fuel bowls use ribs to minimize incoming fuel foaming and control slosh. Nitrophyl floats shaped to avoid shutting off fuel flow during hard cornering. Jet extenders in the secondary bowl keep the jets covered in fuel under hard acceleration. Dual 50 cc accelerator pump circuits can satisfy large engine sizes. The one-piece 3.75”-tall aluminum body is a direct fit on either 4150 or 4500-style intake manifolds. The throttle arm includes all popular transmission kick-down take-off points. Vacuum ports for PCV, power brake, vacuum advance, and transmission modulator for a direct bolt-on installation. Built-in provision for a GM three-wire TPS. Four-circuit billet metering blocks use industry-standard-size screw-in bleeds and jets. The intermediate fuel circuit provides extra fuel just after the blade passes the transfer slot for incredible throttle response. Air bleeds on top of the carburetor provide a quick way to fine-tune each fuel circuit. The high-speed fuel circuit has two air bleed paths – one for lower and one for upper sections of the main well for greater fuel ratio control at high RPM. Two auxiliary idle-air screws allow users to change idle speed without moving the parked throttle blades away from their ideal position. The idle circuit features interchangeable jets and four mixture screws to create a smooth, clean idle, even with the biggest camshafts. Dual power valves allow leaner cruise and add fuel as you get deeper into the throttle for excellent street-performance driving. Protection circuits prevent backfires from damaging the diaphragms.

PN 1309-E85 is a 950 CFM VRS-4150 Race series carburetor designed to flow 30% more fuel to match the needs of E85 ethanol fuel. Like all VRS-4150 carbs, 1309-E85 works great for racing or high-HP street applications built utilizing E85.

VRS4150 E85 Carb 950CFM Satin Finish

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Product Specs

Brand
Edelbrock
Part Number
1309e85
Catalog Number
001881109
Product Line
Carburetors
Category
Fuel Delivery
Type
Carburetors
UPC / Barcode
085347900497
Vendor Product Category
Fuel Delivery
Vendor Product Subcategory
Carburetors
Length
14.70 in
Width
10.95 in
Height
8.25 in
Weight
12.14 lb
Units Per SKU
1
Freight / LTL
No
Ship Alone
No
Air Restricted
No
Prop 65
Y
CARB Approved
No
Clearance Item
No

Shipping & Availability

Current status 21 Available - Ready to ship
Estimated timing Usually ships within 24hrs

This item is showing available inventory. Most in-stock performance parts ship quickly, but timing can vary by warehouse, vendor cut-off time, holidays, and carrier pickup.

STATE RESTRICTIONS: This item is not CARB approved and can not ship to California.

PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Inventory shown: 21 available as of 6/4/2026.
