ARB 2021 Ford Bronco Under Vehicle Protection

MPN: 5480100 Catalog #: 001623535 Category: Skid Plates Check Vehicle Fitment

Product Details

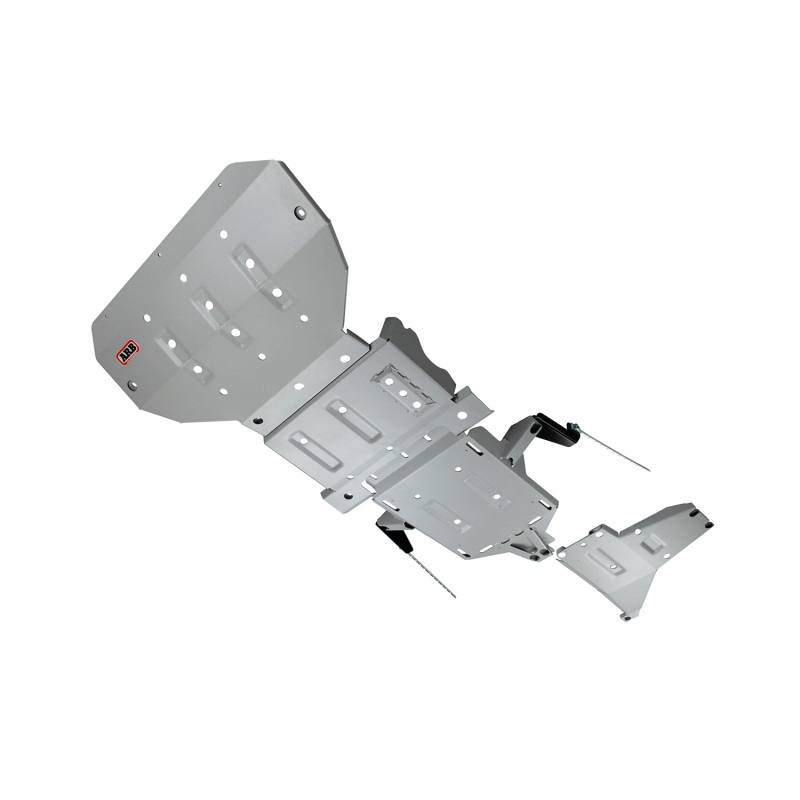

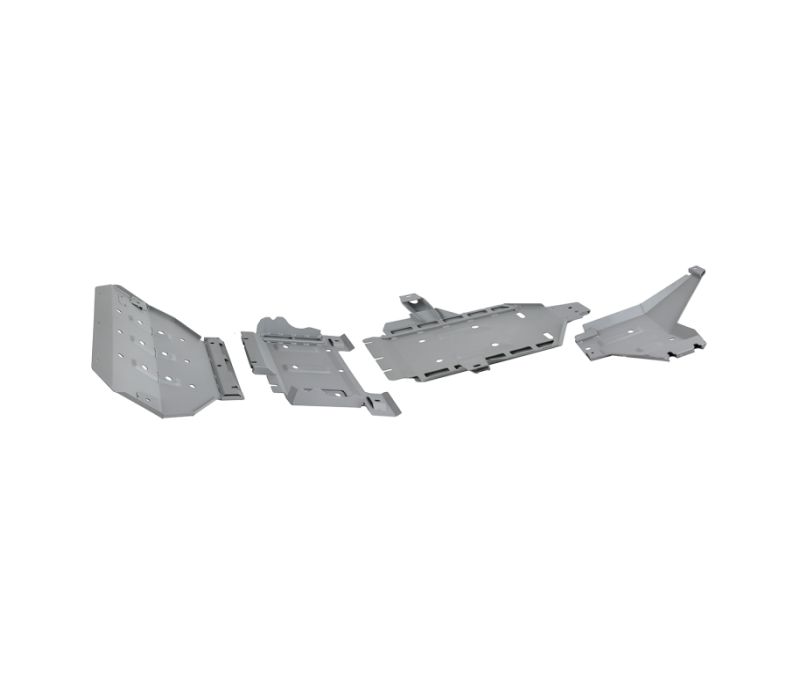

Four panels to help protect the front engine, front differential, rear engine sump, power steering, stabilizer bar, transmission, and transfer case

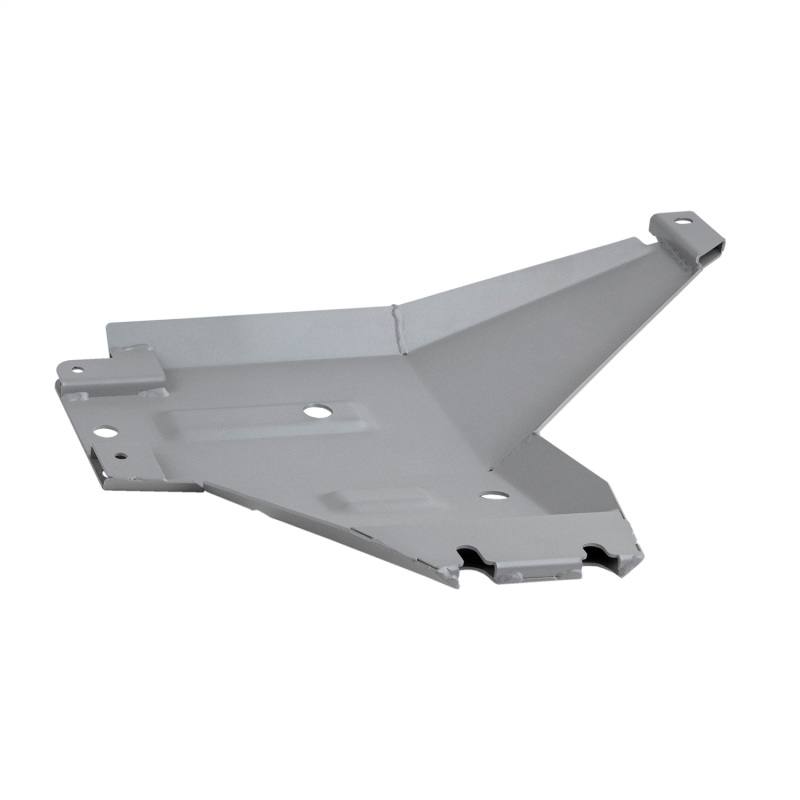

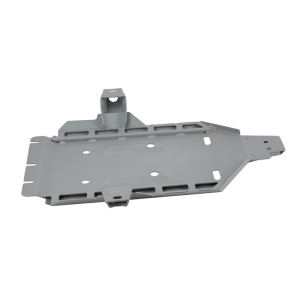

ARB Under Vehicle Protection panels are designed to give protection to vital underbody components including steering, engine sump, transmission and transfer case. Laser cut, press formed and folded 3mm sheet steel is used in ARB UVP to provide superior strength. The ARB UVP to suit the Ford Bronco consist of four carefully designed panels. The front, sump and transmission and transfer case panels bolt directly to the chassis to provide continuous under vehicle protection from the front bumper to the rear of the transfer case. Each UVP panel includes a return edge to add strength to the 3mm panel. To retain the strength and protection required of an ARB UVP, full vehicle servicing will require the removal and refit of panels to obtain access to drain plugs and other service points. This provides an opportunity to check for damage and buildup of dirt and foreign matter. Provision is provided to drain engine oil only with removable insert in the second panel. ARB?s UVP will fit with or without an ARB front bumper. Fitment has not been confirmed with other bumper designs.

ARB Under Vehicle Protection panels are designed to give protection to vital underbody components including steering, engine sump, transmission and transfer case. Laser cut, press formed and folded 3mm sheet steel is used in ARB UVP to provide superior strength. The ARB UVP to suit the Ford Bronco consist of four carefully designed panels. The front, sump and transmission and transfer case panels bolt directly to the chassis to provide continuous under vehicle protection from the front bumper to the rear of the transfer case. Each UVP panel includes a return edge to add strength to the 3mm panel. To retain the strength and protection required of an ARB UVP, full vehicle servicing will require the removal and refit of panels to obtain access to drain plugs and other service points. This provides an opportunity to check for damage and buildup of dirt and foreign matter. Provision is provided to drain engine oil only with removable insert in the second panel. ARB's UVP will fit with or without an ARB front bumper. Fitment has not been confirmed with other bumper designs.

Under Vehicle Protection Kit; Protect Vital Underbody Components; 3mm Sheet Steel; Zinc-Plated;

ARB Under Vehicle Protection; Designed to Protect Vital Underbody Components;

ARB ARB Under Vehicle Protection 2021 Ford Bronco

2021 Ford Bronco (see Fitment Data tab)

ARB Under Vehicle Protection

Under Vehicle Protection Kit

UVP SUITS FORD BRONCO

Skid Plate

Vehicle Fitment

Please verify year, make, model, and any notes before ordering.

Product Specs

Brand
ARB
Part Number
5480100
Catalog Number
001623535
Product Line
UVP Panels
Category
Body Armor & Protection
Type
Skid Plates
UPC / Barcode
9332018087157
Vendor Product Category
Body Armor & Protection
Vendor Product Subcategory
Skid Plates
Length
54.50 in
Width
30.00 in
Height
7.50 in
Weight
100.00 lb
Units Per SKU
1
Freight / LTL
No
Air Restricted
No
Hazmat
No
Chemical
No
Prop 65
Y
CARB Approved
Yes
Clearance Item
No
Non-Returnable
No
Case Quantity
1
Kit
No
