COMP Cams

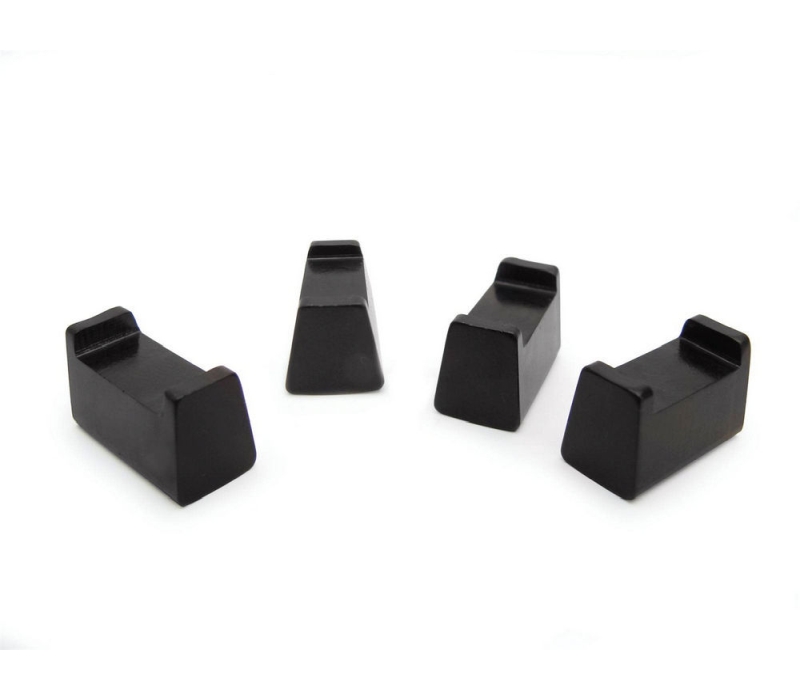

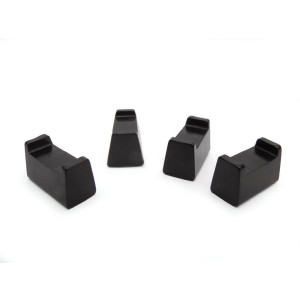

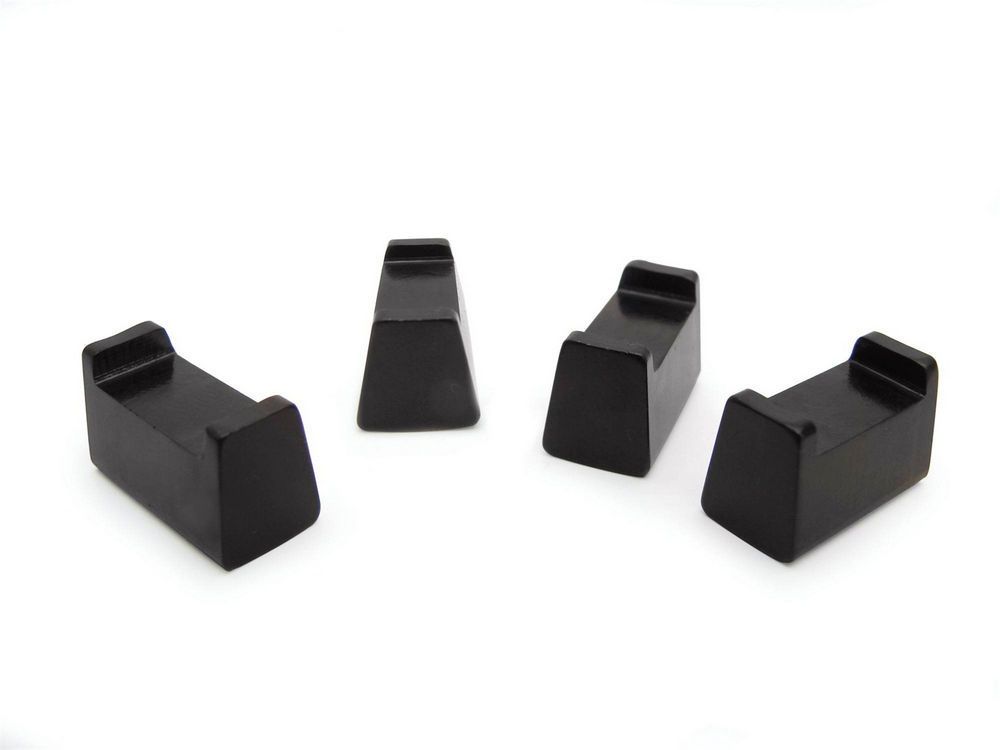

COMP Cams Phaser Limiter Kit Ford 5.0L

MPN: 5493cpg Catalog #: 001594093 Category: Engine Hardware Check Vehicle Fitment

Product Details

The Phaser Limiters and Adjustable Phaser Locks, which took home the honor of Best New Performance-Racing Product at the 2010 SEMA show, allow independent control over intake and exhaust centerlines, and eliminate piston to valve clearance issues that can occur when using larger aftermarket Camshafts in 2011 Ford 5.0L Modular V8 engines. The U.S. Patented COMP Cams Phaser Limiters for the 5.0L Coyote Modular V8 Engines physically limit maximum Cam phasing to 20 crank degrees (10 Cam degrees). Four separate phaser limiters, with the proper tuning software, allow the OEM computer to independently control intake and exhaust centerlines. Take full advantage of the benefits of Variable Valve Timing (VVT) when using aggressive aftermarket Camshafts without needing to install custom pistons to eliminate valve clearance issues. For maximum performance, custom remapping of the Cam phasing ECU control tables is required.Physically limit maximum Cam phasing to avoid piston to valve clearance issues with aggressive camsFour phaser limiters or locks offer precise, independent control over intake and exhaust centerlinesPhaser limiters physically limit Cam phasing to 20 crank degrees (10 Cam degrees) while allocating maximum intake advance and exhaust retardAllows use of larger, more aggressive aftermarket Camshafts in 2011 Ford 5.0L Modular V8 engines

Camshaft Phaser Limiter - Adjustable to 50 Degree Limit - Ford Coyote 2011-13 - Kit

Cam phasers are specially designed, computer-controlled cam gears that automatically optimize camshaft timing based on the current engine rpm. Currently they are used in all 2005 and newer Ford Modular 3 Valve and all 2007 and newer GM L92 engines. Engine oil is pressure fed to the cam phasers through a series of passageways in the cylinder heads and camshafts. The engine computers control solenoids that adjust this oil flow into and out of the phasers control chambers, giving the ability to retard the cams up to 60 crank degrees.

This limiter kit for 11-14 Ford 5.0L Coyote limits the cam phasing to 25 crank degrees for camshafts with more duration and lift. By keeping VVT while adding larger camshafts, more power is gained without sacrificing bottom end torque.

For Ford 5.0L Coyote applications; Automatically optimize camshaft timing based on the current engine rpm; Computer controls the oil flow in and out of the phasers chambers giving the ability to retard the cam up to 60 degrees

Adjustable Phaser Limiters for 11-14 Ford 5.0 Coyote Modular 4 Valve

Engine Variable Valve Timing (VVT) Adjuster Plug

Ford; Modular; Mustang; Mustang GT; Coyote; 5.0

Adj Limiters 11-14 5.0 Coyote Mod 4V

COMP Cams Phaser Limiter Kit Ford 5.0L

VariableTimingAdjstr

None

Cam phasers are specially designed, computer-controlled cam gears that automatically optimize camshaft timing based on the current engine rpm. Currently they are used in all 2005 and newer Ford Modular 3 Valve and all 2007 and newer GM L92 engines. Engine oil is pressure fed to the cam phasers through a series of passageways in the cylinder heads and camshafts. The engine computers control solenoids that adjust this oil flow into and out of the phaser's control chambers, giving the ability to retard the cams up to 60 crank degrees.

This limiter kit for '11-'14 Ford 5.0L Coyote limits the cam phasing to 25 crank degrees for camshafts with more duration and lift. By keeping VVT while adding larger camshafts, more power is gained without sacrificing bottom end torque.

For Ford 5.0L Coyote applications; Automatically optimize camshaft timing based on the current engine rpm; Computer controls the oil flow in and out of the phaser's chambers giving the ability to retard the cam up to 60 degrees

Adjustable Phaser Limiters for '11-'14 Ford 5.0 Coyote Modular 4 Valve

Adj Limiters '11-'14 5.0 Coyote Mod 4V

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Engine Compatibility

Ford - CoyoteMatched variant: Coyote

5.0L V8; Mustang GT Gen1/2/3, F-150

Ford - ModularMatched variant: Modular

4.6/5.4 Modular V8

Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.

Product Specs

Brand
COMP Cams
Part Number
5493cpg
Catalog Number
001594093
Product Line
Phaser Kits
Category
Engines & Parts
Type
Engine Hardware
UPC / Barcode
036584231714
Vendor Product Category
Engine Components
Vendor Product Subcategory
Engine Hardware
Length
6.40 in
Width
3.80 in
Height
0.65 in
Weight
0.11 lb
Units Per SKU
1
Freight / LTL
No
Ship Alone
No
Air Restricted
No
Prop 65
Y
CARB Approved
Yes
Clearance Item
No
