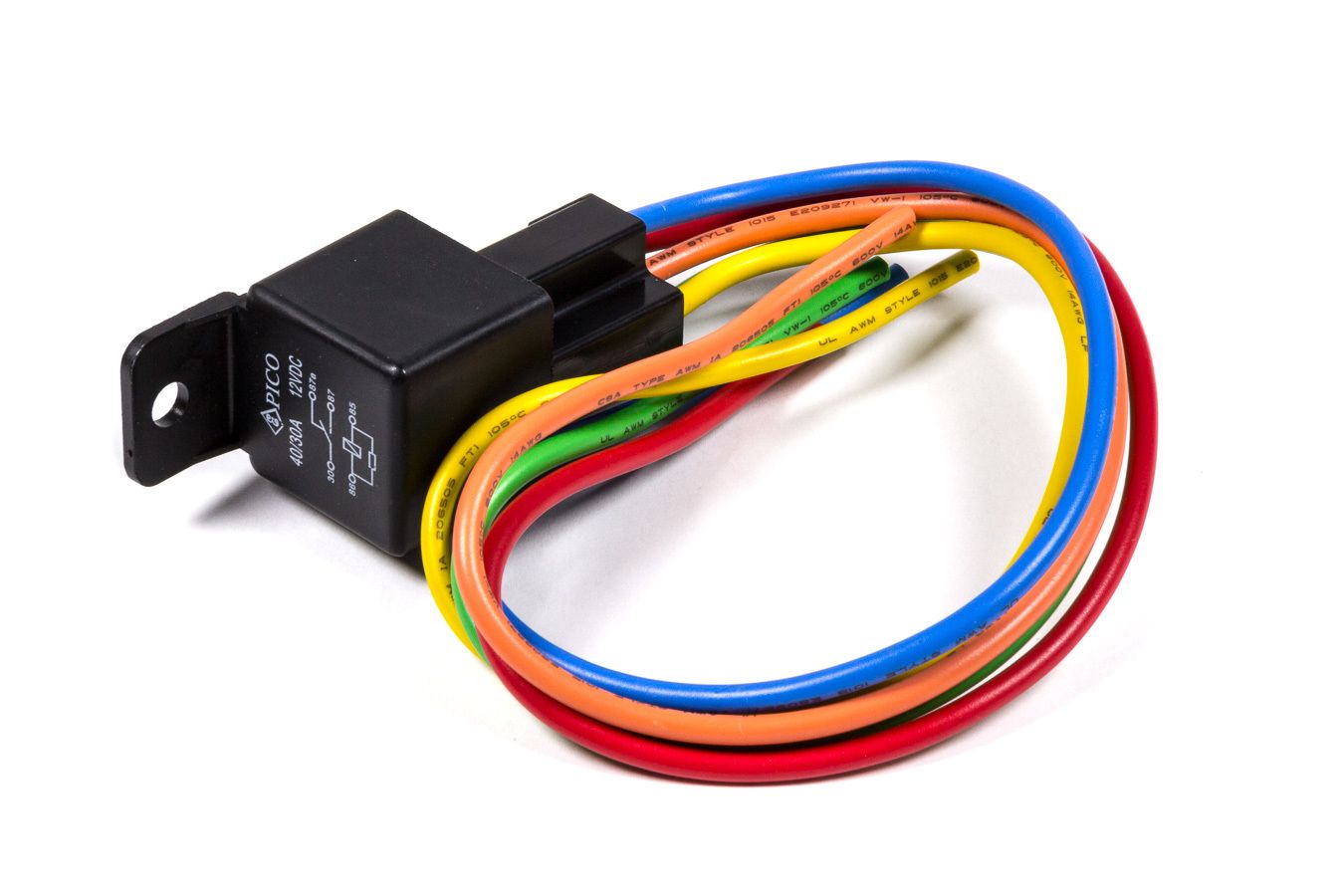

ALLSTAR PERFORMANCE Relay with Harness 30amp

MPN: all76186 Catalog #: 001484746 Category: Relays/relay Kits Check Vehicle Fitment

Product Details

Relay Switch - 30 amp - 12V - Wiring Included - Universal - Kit

Red- 12v Blue-ground Green- switched 12v Yellow-12v output when relay is triggered Orange-12v output when relay is not triggered

Relay Switch - 30 amps - 12V - Wiring Included - Universal - Kit

#30 Terminal From 12V + power supply which is protected by a circuit breaker or fuse rated at 30 amps. #85 Terminal Connect to a good chassis ground. This may also be used as a switch to ground (i.e. for a horn) when terminal #86 is connected to a constant fused power. #86 Terminal Switched 12V + power from a toggle switch or controlled side of ignition switch. #87 Terminal Connect to 12V + side of component to be activated by switch/relay. i.e. fuel pump, cooling fan etc. #87A Not commonly used, this terminal has power until relay is energized. Five lead harness - 3 12ga & 2 18ga

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Product Specs

Brand
Allstar Performance
Part Number
all76186
Catalog Number
001484746
Product Line
Relays/Relay Kits
Category
Ignitions & Electrical
Type
Relays/relay Kits
UPC / Barcode
848238074659
Length
4.56 in
Width
3.75 in
Height
1.20 in
Weight
0.22 lb
Ship Alone
No
Air Restricted
No
