B&M

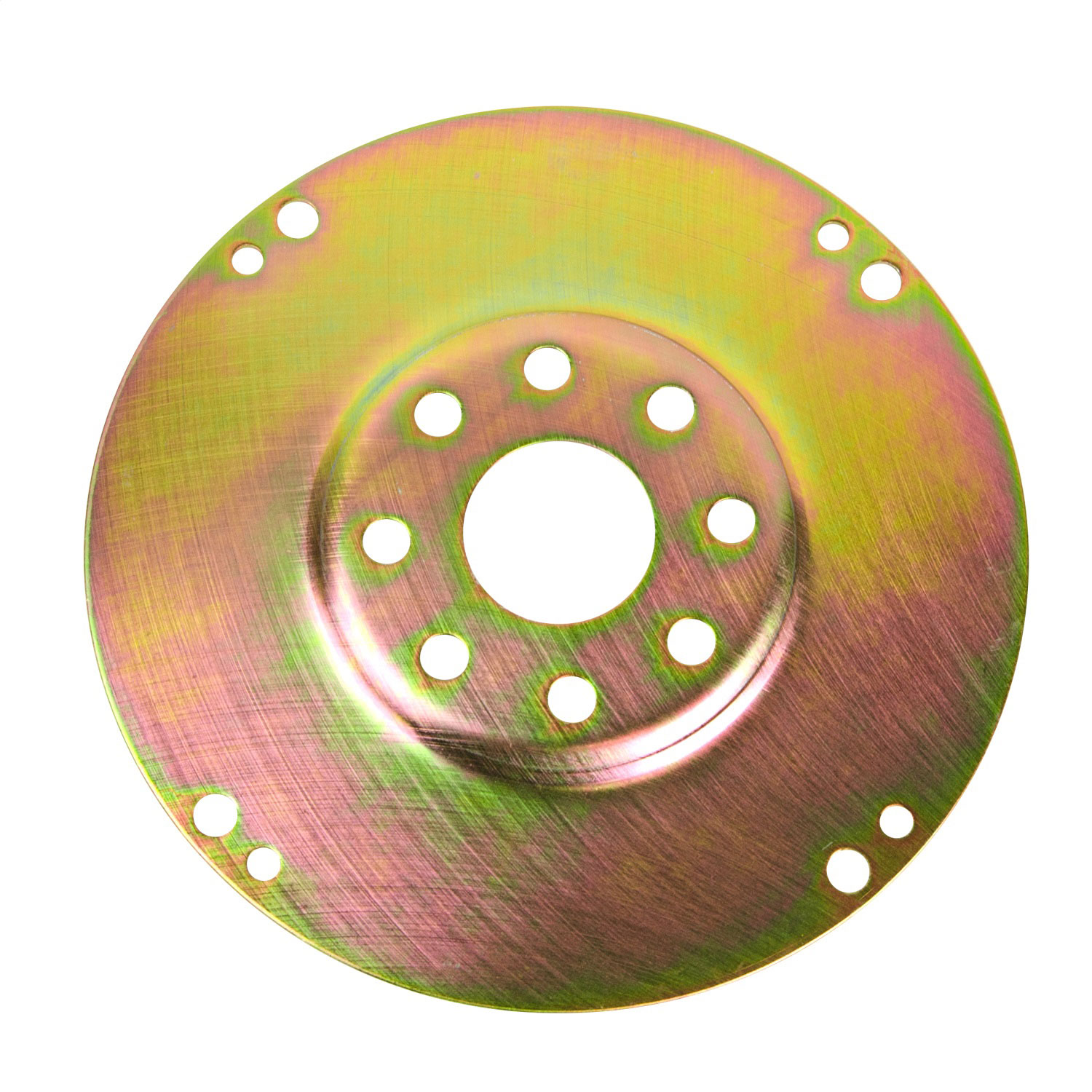

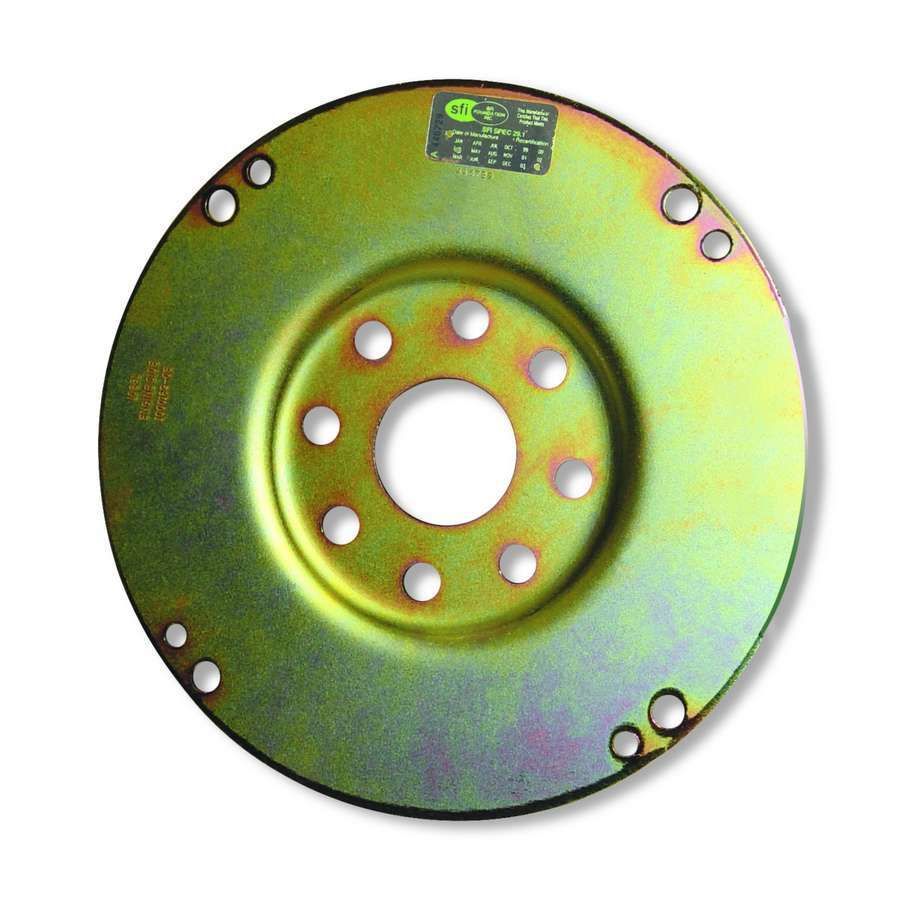

B&M 10231 Automatic Transmission Flexplate
* Images may be a representation and may not reflect the actual product.
Product Details
Automatic Transmission Flexplate; Standard SFI; 8 Bolt Crank; Internal Balance; 10 in. Bolt Circle;
As performance levels increase, an O.E. style flexplate just won't cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1962-up A727, A904 transmissions and all internally balanced Chrysler, Dodge and Plymouth V8 engines with 8-bolt crankshaft flange. Features include high tensile strength steel construction to resist elongation and cracking, 10.00 inch bolt pattern and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953.
Fitment: Fits 1962 and newer Chrysler; Dodge; Plymouth Torqueflite A727 and A904 automatic transmissions. Bolts onto 8 bolt internally balanced crankshaft with a 10 inch bolt pattern.
DETAILS:
Part Number 10231 SPECS:
Flexplate - SFI 29.1 - Steel - Torqueflite 727 / 904 - Internal Balance - 8-Bolt Crank - Mopar V8 - Each
DETAILS:
- Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
- Automatic Transmission Flexplate
- Automatic Transmission Flexplate
- Ideal For Street Applications
- Includes SFI Certification Sticker
- NHRA/IHRA Legal For All Classes
- To Extreme Duty Racing
- To High RPM Use
- FLEXPLATE 8 BOLT CRANK SM B.C. ONLY
- 10231; Flexplate; B/M; transmission; automatic; shift kit; improver; transkit; racing; knob; lever; torque converter
- Auto Trans Flexplate
Part Number 10231 SPECS:
- Balance: Internal
- California Proposition 65 Chemical Name 1: Cadmium and cadmium compounds
- Crankshaft Bolt Hole Quantity: 8
- Dual Pattern: No
- IHRA Legal: Yes
- Item Weight: 3.500 lbs.
- NHRA Accepted: Yes
- Outside Diameter: 10.840 in.
- Ring Gear: No
- SFI Approved: Yes
- SFI Certification Sticker: Included
- Title: B&M 10231 Chrysler SFI Flexplate - 62 & Later Internally Balanced 8-Bolt Crank - A727 A904
- WARNING CA Proposition 65: No
Flexplate - SFI 29.1 - Steel - Torqueflite 727 / 904 - Internal Balance - 8-Bolt Crank - Mopar V8 - Each
Vehicle Fitment
Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.
Product Specs
- Brand
- B&M
- Part Number
- 10231
- Catalog Number
- 001433027
- Product Line
- Flexplates And Components
- Category
- Transmission
- Type
- Flexplates And Components
- UPC / Barcode
- 019695102319
- Length
- 13.55 in
- Width
- 13.40 in
- Height
- 1.00 in
- Weight
- 4.88 lb
- Ship Alone
- No
- Air Restricted
- No
Shipping & Availability
This item is showing available inventory. Most in-stock performance parts ship quickly, but timing can vary by warehouse, vendor cut-off time, holidays, and carrier pickup.
Inventory shown: 6 available as of 6/4/2026.
Lifetime Limited Warranty applies to all B&M shifters, differential covers and cast aluminum pans.
One Year Limited Warranty applies to B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products).
90 Day Limited Warranty applies to B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids).
B&M Performance & Off-Road (“B&M”) extends the following limited warranty to the original purchaser of its shifters, pans, coolers, transmissions, components and accessories (hereafter “products”).
B&M warrants the products mentioned above against defects in materials and workmanship for the period set forth below, when they are owned by the original purchaser and remain installed on the vehicle on which they were originally installed. This warranty is void if the product was not installed properly on the vehicle, was installed on a vehicle for which it was not designed, or was removed from the vehicle on which it was originally installed and reinstalled on another vehicle. This warranty shall not apply to normal wear (bushings, springs, etc.), cosmetic issues such as coatings and material discoloration, or any product that was installed on a racing vehicle (excluding shifters), installed contrary to B&M instructions, or altered, misused, repaired, damaged from an accident, collision, undercarriage road impact or debris, or willful or negligent act.
The warranty set forth herein for all B&M shifters, differential covers and cast aluminum pans extends for a period of the life of the original vehicle the product was installed on. The warranty set forth herein for B&M coolers, shifter related accessories (knobs, handles, etc.), torque converters, flexplates, dipsticks, stamped steel pans and other transmission related accessories (except racing products) extends for a period of one year from the date of original purchase and the original vehicle it was installed on. The warranty set forth herein for B&M transmissions, launch control kits and all electrical components (switches, lights, solenoids) extends for a period of 90 days from the date of original purchase and the original vehicle it was installed on.
To make any claim under the terms of this limited warranty, the original purchaser MUST either return the product to the original retailer or directly to B&M. NOTE: ALL B&M TRANSMISSIONS MUST BE RETURNED DIRECTLY TO B&M. If the original purchaser elects to return the product to B&M directly, he or she must first contact B&M and obtain a Returned Material Authorization (RMA) number. Once the RMA number is received, the original purchaser may return the product to address provided by B&M along with the RMA number and Proof of Purchase of the covered product. The Proof of Purchase must clearly show the place of purchase, purchase price, product purchased, and date of purchase. If upon inspection by B&M the product is found to be defective in material or workmanship, B&M shall at its option, either exchange the product for new product with the same part number or refund the original purchase price.
This warranty is not contingent upon the purchaser’s completion of the Warranty Registration Form found on the B&M website. If however the purchaser completes and submits that form at the time of purchase, B&M will keep that form on file which may serve as an aid in determining warranty coverage in the event of the loss of the original purchase receipt.
B&M’s liability is expressly limited to the replacement of the product or refund of the purchase price as described herein. B&M shall have no liability for the cost of installation or removal of the defective product, the cost of labor or any additional parts required to complete the installation of the replacement product, towing or transportation costs, or return shipping costs. In no event shall B&M be liable for any direct, indirect, special, incidental and/or consequential losses or damages, including but not limited to interruption of business or loss of business or loss of profit or damage to related components resulting from the use of or inability to use the product, or any breach of warranty or any defect in the product, even if B&M shall have been advised of the possibility of such potential losses or damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights which may vary from state to state.
The warranties set forth herein are exclusive and unless otherwise required by applicable law, no other warranties are made by B&M or are authorized to be made with respect to the product.
