Skunk2 Racing

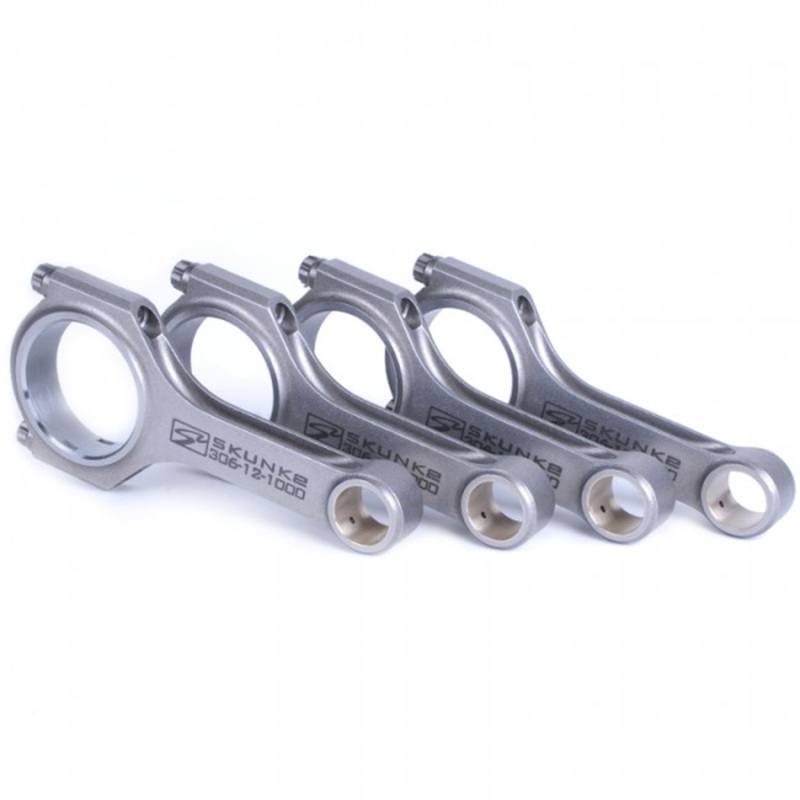

Skunk2 Alpha Series Subaru EJ25 Connecting Rods

MPN: 306-12-1000 Catalog #: 001241778 Category: Connecting Rods - 4Cyl Check Vehicle Fitment

Product Details

Alpha Series Connecting Rod Set, 130.59mm Length, 502 Grams, Rated to 900HP, H-Beam, Incl. 3/8 ARP2000 Bolts/Lube, 4340 Chromoly Steel, Set of 4,

Alpha Series Rods are forged from select 4340 chromoly steel and feature an H-beam design, resulting in the ultimate strength-to-weight ratio. 4340 chromoly is one of the strongest materials available, however, not all 4340 chromoly is the same. As such, Skunk2 relies on extensive material testing and works closely with its foundry to produce high-quality rods at an affordable price. Comprehensive heat-treating, tempering, and shot-peening processes together ensure that each Alpha Series Rod remains consistent and strong. Finally, each rod is magna-fluxed to ensure integrity and that each process has been completed thoroughly and according to Skunk2’s rigid specifications. Skunk2’s engineers spent nearly three years developing and testing its H-beam rod design. The results are one of the strongest beam configurations available, capable of handling more than 900 hp. Engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features to reduce wear and increase strength. Skunk2’s straight design distributes stress across a larger area when compared to tapered rods, providing additional support where necessary. Alpha Series Rods are manufactured from two-piece forgings, resulting in optimal grain orientation along the rod cap for increased strength. By orienting the metal’s grain in the direction of stress along the rod cap, perpendicular to the stress exerted along the beam, strength is significantly increased. Skunk2’s two-piece forgings provide a precision-tight fit between the rod’s cap and its beam without resorting to the brittle materials required by other processes. Alpha Series Rods also feature dual oil passages at their pin ends, providing additional lubrication and cooling, which leads to an even stronger, more durable rod. Unlike other designs, Skunk2’s carefully positioned, offset oil passages help deliver lubrication around the entire wrist pin, during each phase of the engine cycle.

Alpha Series Connecting Rod Set; 130.59mm Length; 502 Grams; Rated to 900HP; H-Beam; Incl. 3/8 ARP2000 Bolts/Lube; 4340 Chromoly Steel; Set of 4;

Skunk2 Alpha Series Subaru EJ25 Connecting Rods

Alpha Series Connecting Rod Set

Connecting Rods; Mit

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Product Specs

Brand
Skunk2 Racing
Part Number
306-12-1000
Catalog Number
001241778
Product Line
SK Alpha Connecting Rods
Category
Engines & Parts
Type
Connecting Rods - 4Cyl
UPC / Barcode
873265006786
Vendor Product Category
Engine Components
Vendor Product Subcategory
Connecting Rods - 4Cyl
Length
9.80 in
Width
4.30 in
Height
4.20 in
Weight
5.00 lb
Units Per SKU
1
Freight / LTL
No
Air Restricted
No
Prop 65
Y
CARB Approved
Yes
Clearance Item
No

Shipping & Availability

Current status Backordered
Estimated timing Ships when available

This item is currently out of stock, but orders are still being accepted. Orders are fulfilled in the order received once inventory becomes available.

PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
