Edelbrock Max-Fire Distributor Chevrolet 348/409

MPN: 22752 Catalog #: 001132932 Category: Distributors Check Vehicle Fitment

Product Details

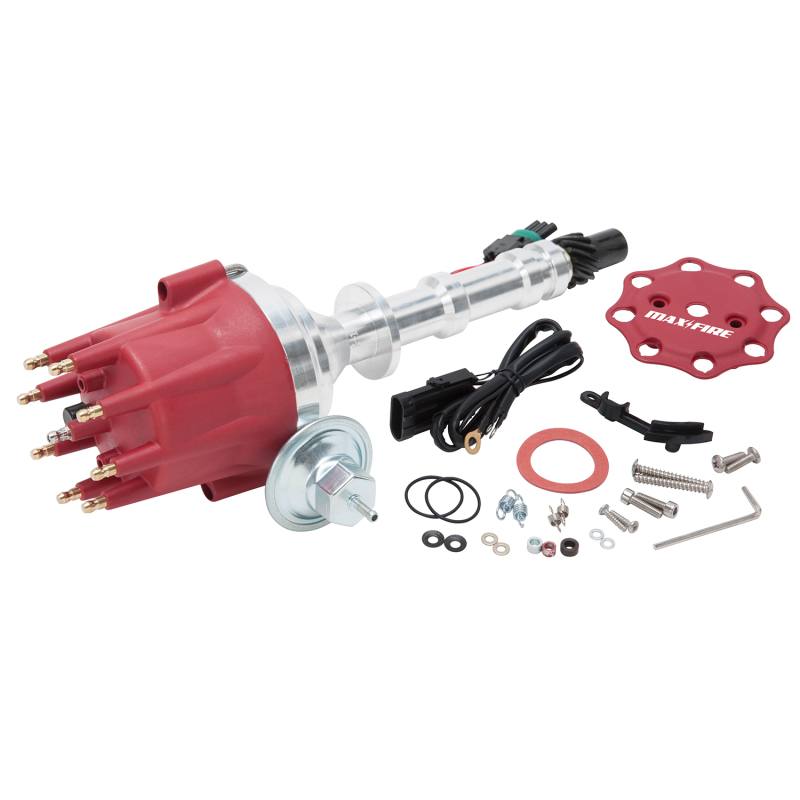

Edelbrock part #22752 Max-Fire distributor for Chevy 348/409 engines is ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit. FEATURES AND BENEFITS: - CNC machined from 6061-T6 aluminum with O-ring grooves for use in a fully machined engine block - Cap and rotor are molded in high quality 30% glass filled polyester for durability and carbon tracking resistance - Features brass contacts and a stainless steel rotor spring for maximum conductivity - Hardened iron drive gear ensures long service life - Fully adjustable mechanical and vacuum advance for increased mileage potential

These Max-Fire distributors are ready to run right out-of-the-box and are the perfect upgrade for your ignition system. They're ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that you're getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPM's. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit.

These Max-Fire distributors are ready to run right out-of-the-box and are the perfect upgrade for your ignition system. Theyre ideal for replacing or upgrading from a points triggered distributor. They feature precision machining for a perfect fit along with a simple three wire hook up for an easy installation with no need to run an external ignition control box. The centerless ground shaft utilizes an upper sealed roller bearing with an extra long lower bronze Oil-Lite bushing for smooth operation. The high output magnetic pickup and large paddle wheel reluctor deliver a strong trigger signal at high RPM for maximum performance. All of these features allow Max-Fire distributors to provide unrivaled voltage to the coil, ensuring that youre getting maximum performance from your engine. We recommend a new Max-Fire coil for maximum voltage output, ensuring you get the most from your high performance engine at higher RPMs. Each distributor includes a cap, rotor, retainer and mechanical advance curve kit.

Edelbrock; Distributor; Max-Fire; EFI; Electronic Fuel Injection; Magnetic; Vacuum; Mechanical; HEI; Red; Aluminum; Kit; 22752; Chevy 409

Edelbrock Max-Fire Distributor Chevrolet 348/409

Edelbrock Max-Fire Distributor for Chevy 409

Chevrolet:W-Series:348 (5.7L)/409 (6.7L)

DISTRIBUTOR CHEVY 409 READY TO RUN

Max-Fire Distributor for Chevy 409

Edelbrock Electronics

DISTRIBUTOR

ELECTRONICS

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Product Specs

Brand
Edelbrock
Part Number
22752
Catalog Number
001132932
Product Line
Distributors
Category
Ignitions & Electrical
Type
Distributors
UPC / Barcode
085347227525
Vendor Product Category
Ignition
Vendor Product Subcategory
Distributors
Length
17.63 in
Width
5.94 in
Height
3.31 in
Weight
5.00 lb
Units Per SKU
1
Freight / LTL
No
Air Restricted
No
Prop 65
Y
CARB Approved
No
Clearance Item
No

Shipping & Availability

Current status 8 Available - Ready to ship
Estimated timing Ships from factory

This item is showing manufacturer availability and may ship directly from the manufacturer. Tracking details are provided as soon as they become available. ETA 0-5 Days to ship.

STATE RESTRICTIONS: This item is not CARB approved and can not ship to California.

PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Inventory shown: 8 available as of 6/3/2026.
