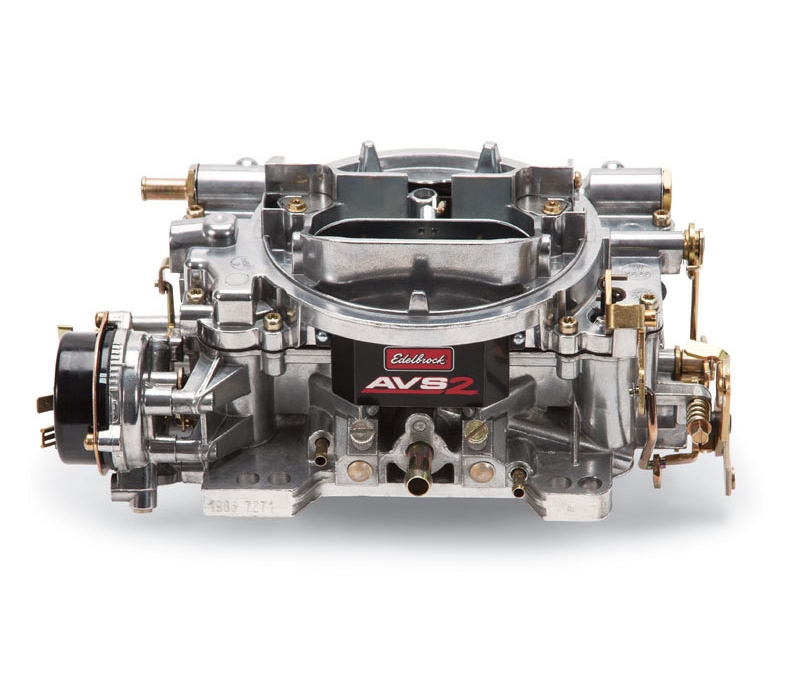

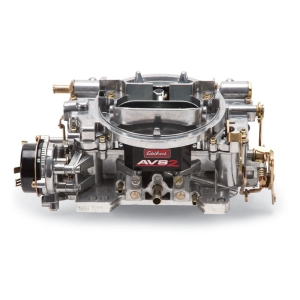

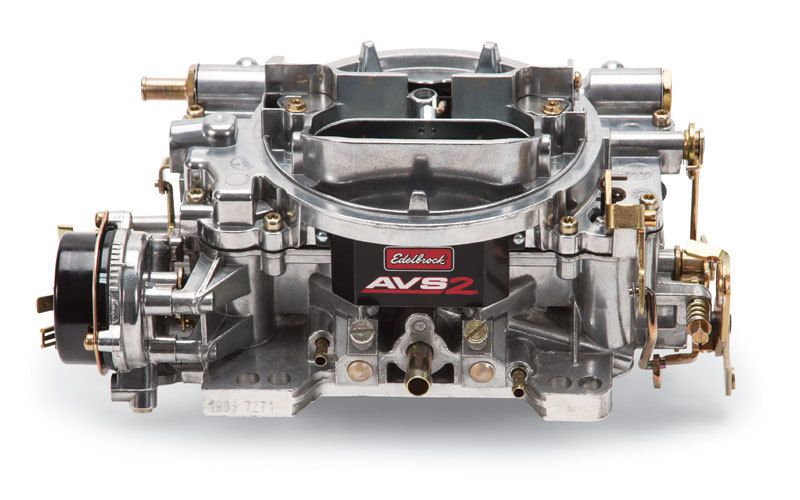

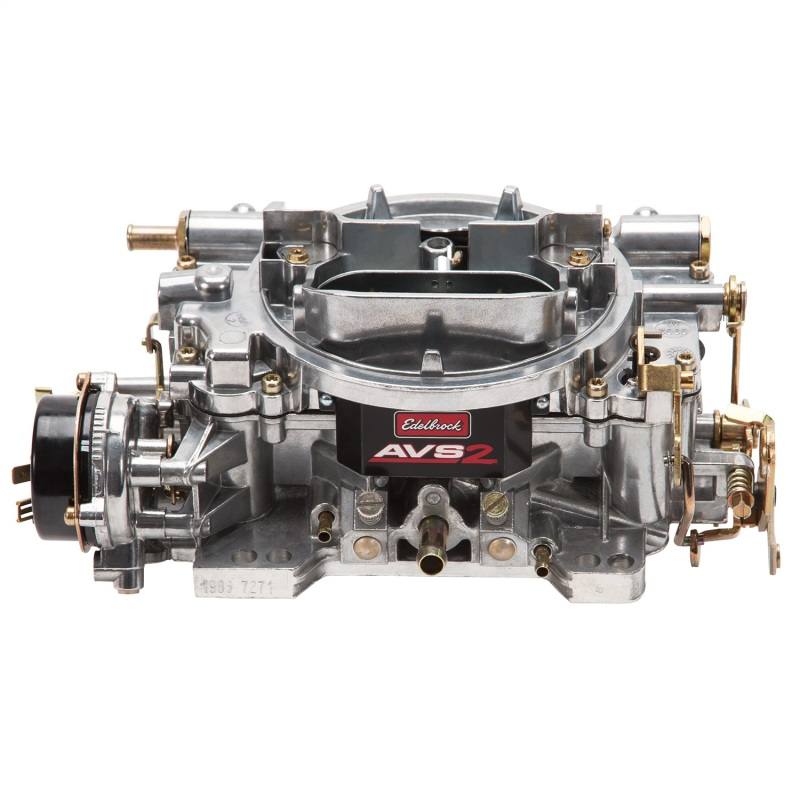

Edelbrock 650 CFM Thunder AVS Annular Carb w/ Electronic Choke

MPN: 1906 Catalog #: 001132798 Category: Carburetors Check Vehicle Fitment

Product Details

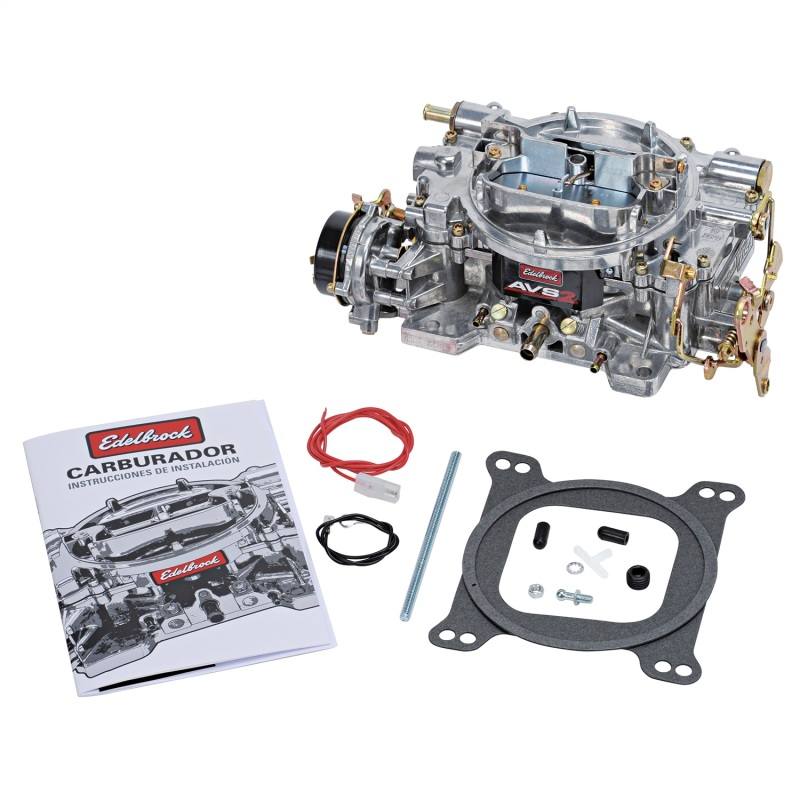

The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM. The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets, .070 x .037 metering rods, orange (5 Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063.

The Edelbrock #1906 AVS2 Series 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock #1906 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets ? Primary .101, Secondary .098, Metering Rods ? .070 x .037, Step-Up Spring ? orange (5 Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design.

The AVS2 Series is the next generation in Edelbrock carburetors. The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular booster features eight, equally spaced orifices to improve fuel metering from idle to the main. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets - Primary .101, Secondary .098; Metering Rods - .070 x .037; Step-Up Spring - orange (5 Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

1906; Edelbrock; carburetor; carb; AVS2 series; AVS2; 4-barrel; square-bore; square flange; 650 cfm; 650 carb; 4150; EPS; leak free design; holds tune; electric choke; Performance; Qwik-Tune; Qwik-Tune Secondary Air Valve

AVS2 Carburetor #1906 650 CFM With Electric Choke; Satin Finish (Non-EGR)

CARBURETOR THUNDER SERIES AVS ANNULAR BOOSTERS 650 CFM (ELECTRONIC CHOKE)

Edelbrock 650 CFM Thunder AVS Annular Carb w/ Electronic Choke

Edelbrock Carb-Avs

CARBURETOR

CARB-AVS

CARB

Carburetor - AVS2 - 4-Barrel - 650 CFM - Square Bore - Electric Choke - Mechanical Secondary - Single Inlet - Aluminum - Tumble Polished - Each

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Product Specs

Brand
Edelbrock
Part Number
1906
Catalog Number
001132798
Product Line
Thunder Carb
Category
Fuel Delivery
Type
Carburetors
UPC / Barcode
085347019069
Vendor Product Category
Fuel Delivery
Vendor Product Subcategory
Carburetors
Length
13.40 in
Width
7.30 in
Height
6.60 in
Weight
9.10 lb
Units Per SKU
1
Freight / LTL
No
Ship Alone
No
Air Restricted
No
Prop 65
Y
CARB Approved
No
Clearance Item
No
