Edelbrock

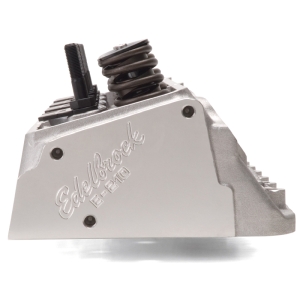

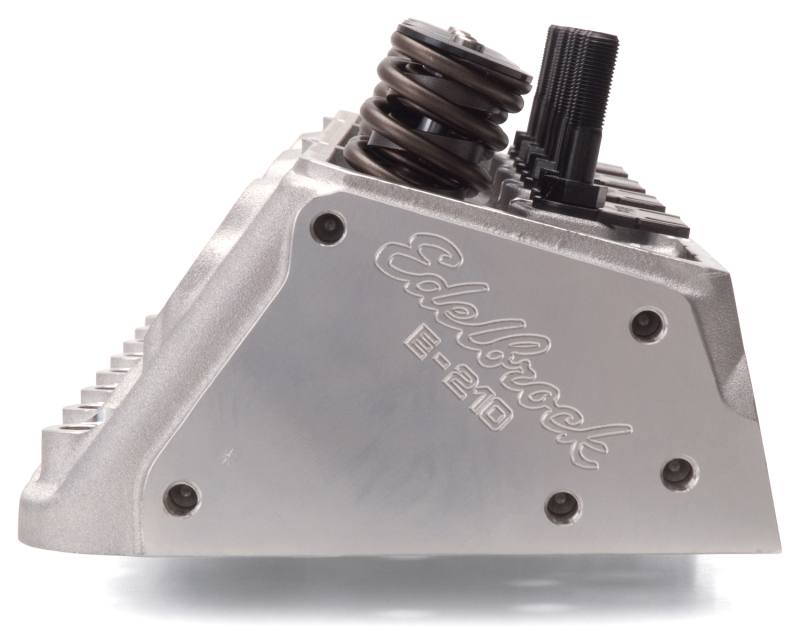

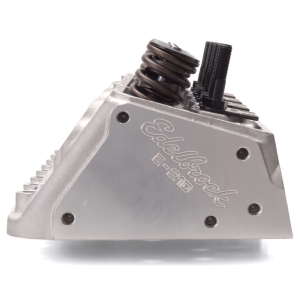

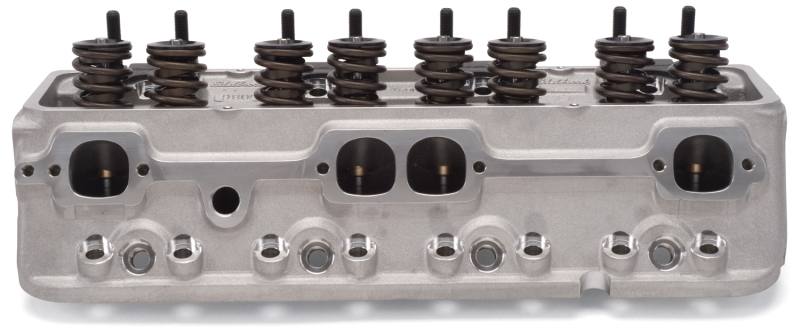

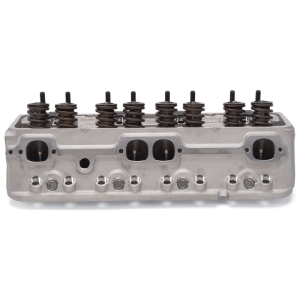

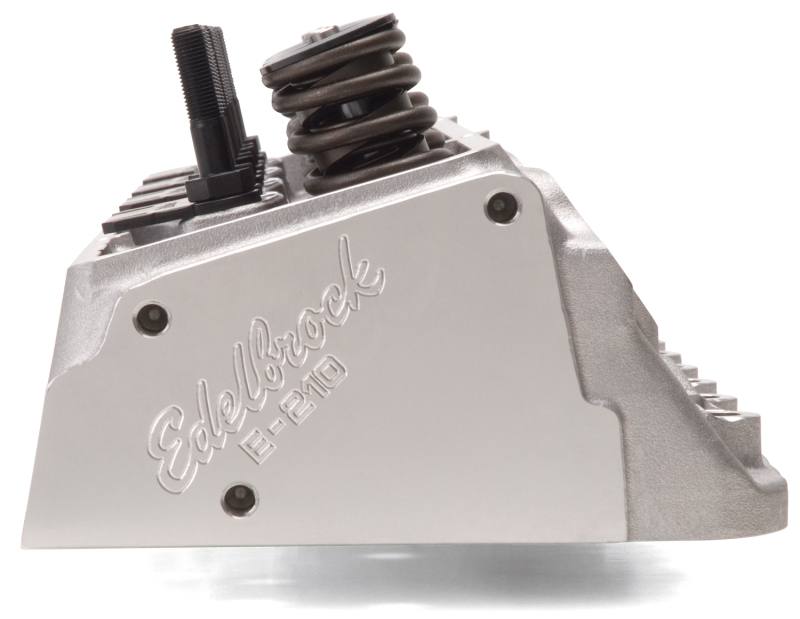

Edelbrock Cylinder Head E-Series E-210 SB Chevrolet (Complete Pair)

MPN: 5087 Catalog #: 001132010 Category: Heads Check Vehicle Fitment

Product Details

The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines. The Edelbrock #5027 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.

The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications. They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts.

Cylinder Head Specifications: Combustion chamber volume: 64cc; Intake runner volume: 210cc; Exhaust runner volume: 75cc; Intake valve diameter: 2.08; Exhaust valve diameter: 1.60; Valve stem diameter: 11/32; Valve guides: Maganese Bronze; Deck thickness: 9/16; Valve spring diameter: 1.46; Valve spring maximum lift: .575(5085) / .650(5087); Rocker stud: 3/8; Guideplate: Hardened steel; Pushrod diameter: 5/16; Valve angle: 23?; Exhaust port location: N/A; Spark plug fitment: 14mm x .750 reach, gasket seat * Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4 reach with flat gasket seat. Requires hardened pushrods. Edelbrock recommends Fel-Pro #1206 intake gaskets for use with E-210 cylinder heads.

Edelbrock; SBC Head; E-210; Hydraulic Roller Cam; V8; Cylinder Heads; 5087

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Edelbrock Cylinder Head; E-Series; E-210 SB Chevrolet (Complete; Pair)

Edelbrock Cylinder Head E-Series E-210 SB Chevrolet (Complete Pair)

Small-Block Chevy E-Series Cylinder Head E-210 Hydraulic Roller Cam

Cylinder Head; E-Series; E-210 SB Chevrolet (Complete; Pair)

Edelbrock Cylinder Heads

Engine Cylinder Head

CYLINDER HEADS

CYLINDER HEAD

Cylinder Head - E-Series E-210 - Assembled - 2.080 / 1.600 in Valves - 210 cc Intake - 64 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Pair

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Engine Compatibility

GM - SBCMatched variant: Chevrolet Small Block

Small Block Chevy; 265–400ci

Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.

Product Specs

Brand
Edelbrock
Part Number
5087
Catalog Number
001132010
Product Line
E-Street Cylinder Head
Category
Engines & Parts
Type
Heads
UPC / Barcode
85347050871
Vendor Product Category
Engine Components
Vendor Product Subcategory
Heads
Length
25.30 in
Width
12.30 in
Height
8.90 in
Weight
60.50 lb
Units Per SKU
1
Freight / LTL
No
Ship Alone
No
Air Restricted
No
Prop 65
Y
CARB Approved
No
Clearance Item
No

Shipping & Availability

Current status Special Order
Estimated timing Ships directly from manufacturer

This item is fulfilled directly by the manufacturer/vendor and never stocked. Estimated ship times may vary.

STATE RESTRICTIONS: This item is not CARB approved and can not ship to California.

PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
