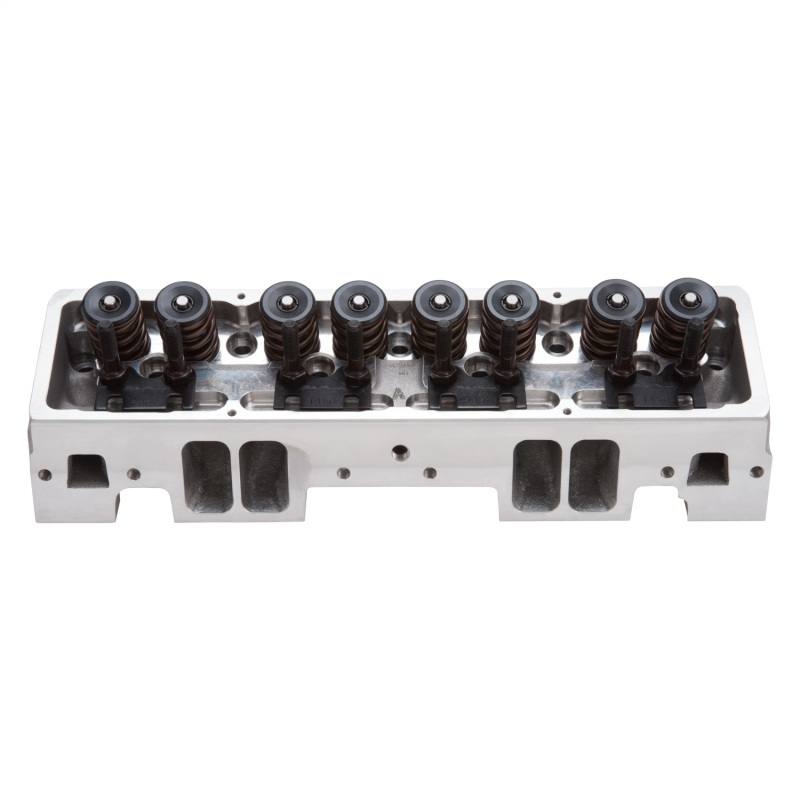

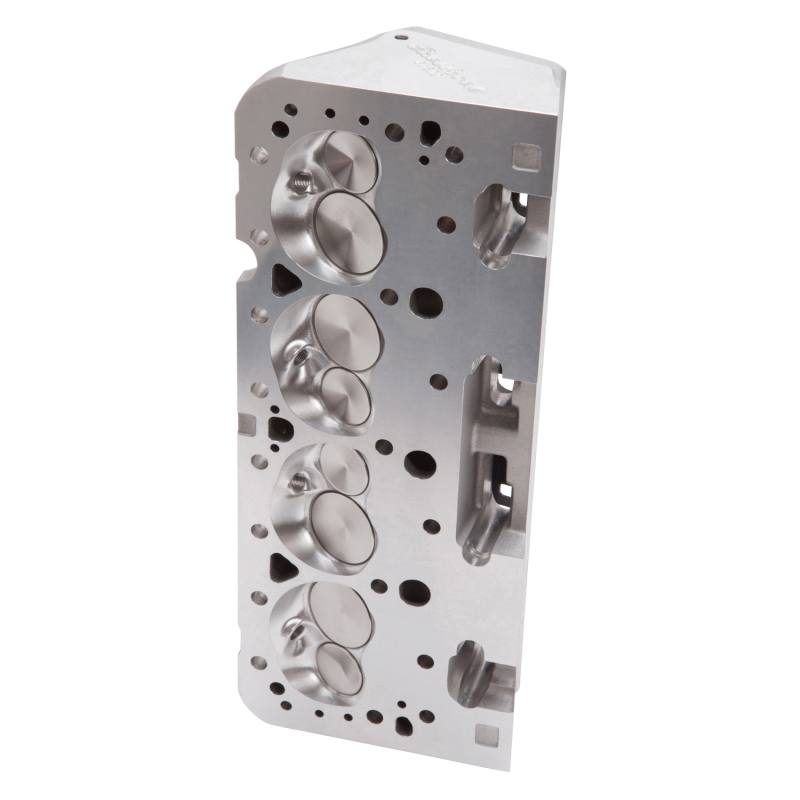

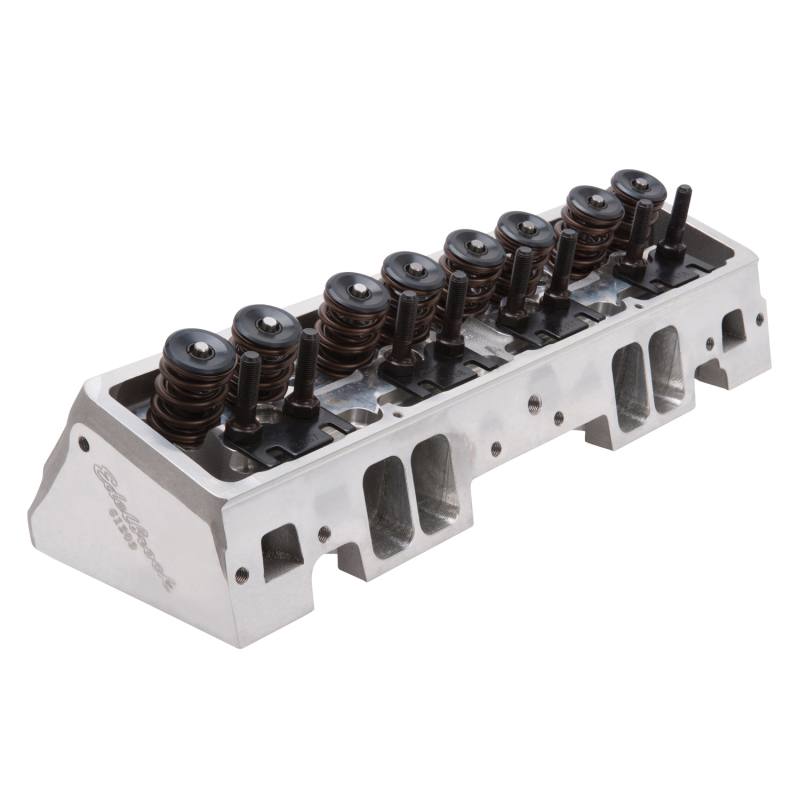

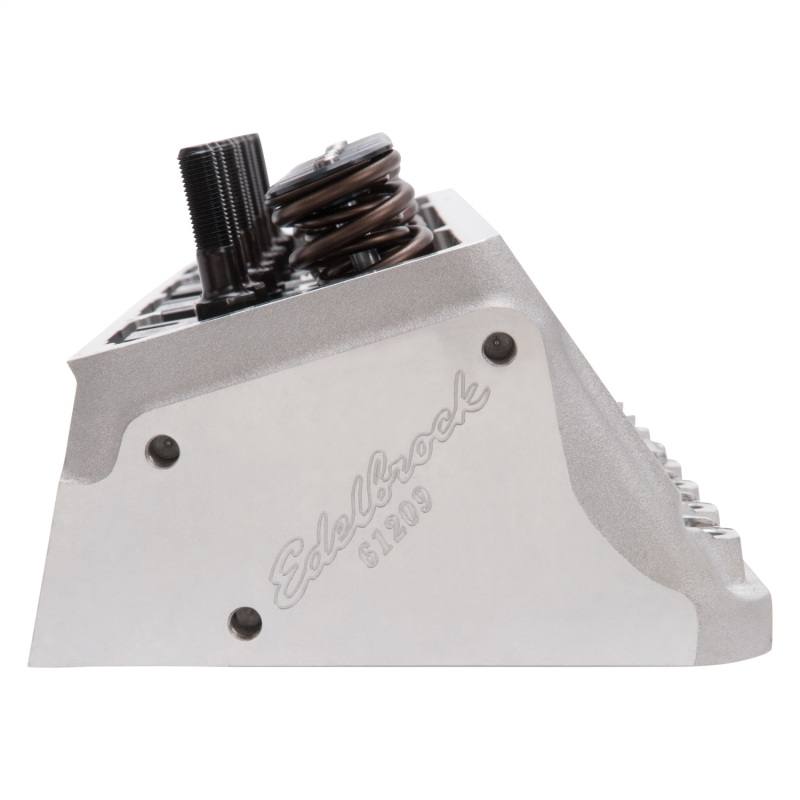

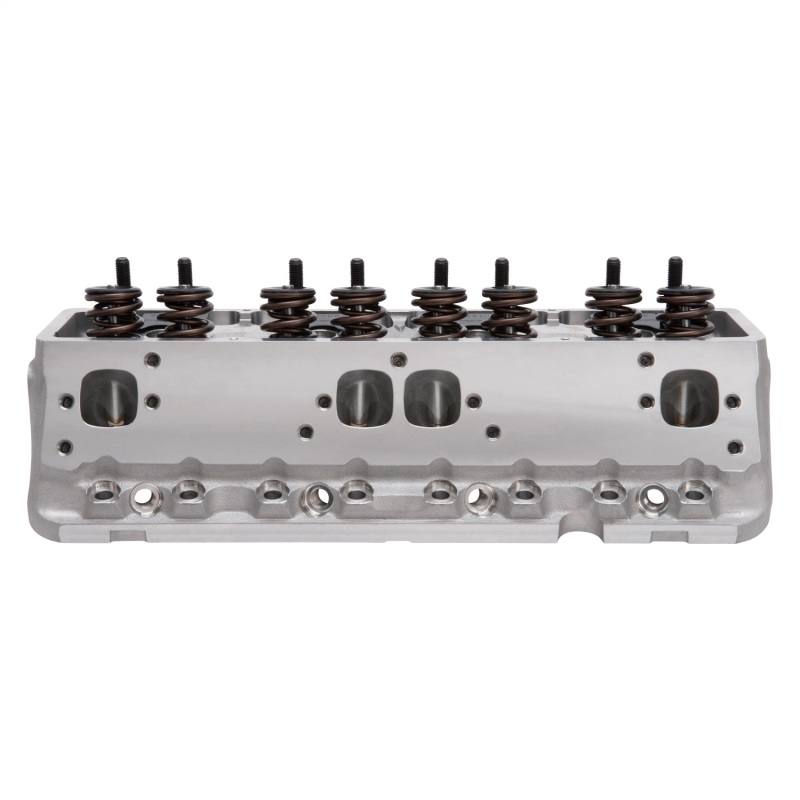

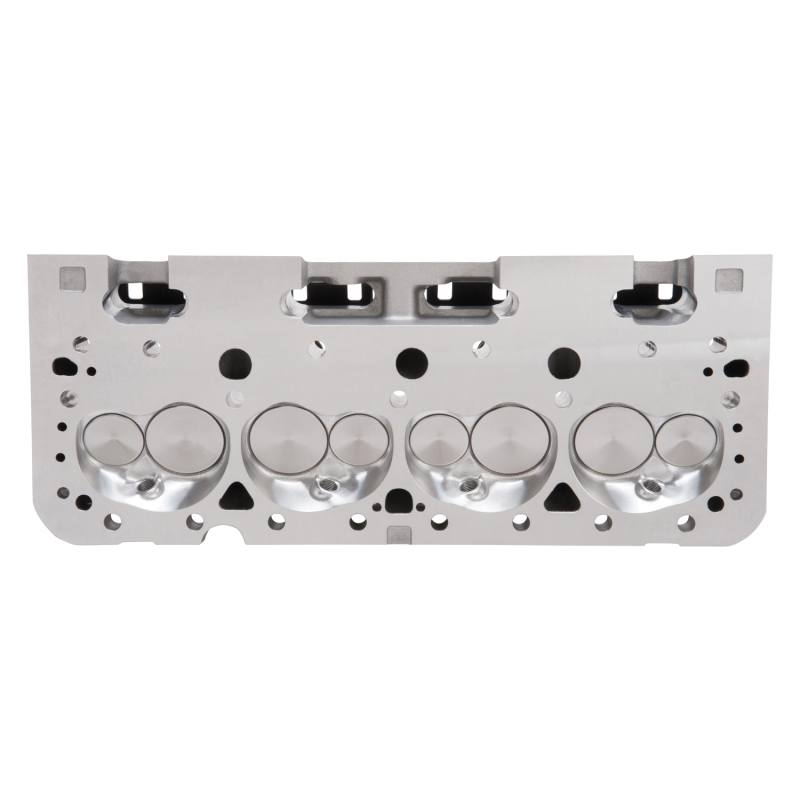

Edelbrock Cylinder Head SBC 23-Degree Victor E-Cnc 225 Solid Roller

MPN: 61209 Catalog #: 001132001 Category: Heads Check Vehicle Fitment

Product Details

The Edelbrock part #61209 Small Block Chevy E-CNC 225 cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift. E-CNC S/B CHEVY FEATURES: - Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance - Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds - Delivers up to 30-60 horsepower over Performer RPM cylinder head - #61205 & #61209 features 7/16 studs and angled spark plugs - Ideal for high Performance's street and racing applications

Cylinder Head Specifications: Combustion chamber volume:-?64cc /68cc, Intake runner volume:-?185cc / 225cc / 260cc, Exhaust runner volume:-?75cc / 88cc, Intake valve diameter:-?2.02in (185cc) / 2.10in (225cc), Exhaust valve diameter:-?1.60in, Deck thickness:-?9/16in, Valve spring diameter:-?1.46in, Valve spring diameter:-?1.46in, Valve spring maximum lift:-?.575in, Rocker stud:-?3/8in (185cc) / 7/16in (225cc), Guideplate:-?Hardened steel, Pushrod diameter:-?5/16in, Valve angle:-?23, Spark plug fitment:-?14mm x .750 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in reach with flat gasket seat. IMPORTANT NOTES, To use stock rockers on small-block Chevy heads, .100in longer than stock pushrods are required. Edelbrock pushrods No.9629 are recommended for use with flat tappet cams only. S/B Chevy heads may not be used on engines with less than 4in bore (262, 265, 267, 283, 305, 307 c.i.d.) except with cams having less than .450in valve lift. Replacement valve part numbers are for sets of 8.

Cylinder Head Specifications: Combustion chamber volume:á64cc /68cc; Intake runner volume:á185cc / 225cc / 260cc; Exhaust runner volume:á75cc / 88cc; Intake valve diameter:á2.02 (185cc) / 2.10 (225cc); Exhaust valve diameter:á1.60; Deck thickness:á9/16; Valve spring diameter:á1.46; Valve spring diameter:á1.46; Valve spring maximum lift:á.575; Rocker stud:á3/8 (185cc) / 7/16 (225cc); Guideplate:áHardened steel; Pushrod diameter:á5/16; Valve angle:á23?; Spark plug fitment:á14mm x .750 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4 reach with flat gasket seat. IMPORTANT NOTES; To use stock rockers on small-block Chevy heads, .100 longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended for use with flat tappet cams only. S/B Chevy heads may not be used on engines with less than 4 bore (262, 265, 267, 283, 305, 307 c.i.d.) except with cams having less than .450 valve lift. Replacement valve part numbers are for sets of 8.

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Edelbrock; SBC 225; CNC; Small Block Chevy; Cylinder Head; V8; 61209

Edelbrock Cylinder Head SBC 23-Degree Victor E-Cnc 225 Solid Roller

Cylinder Head; SBC; 23-degree; Victor; E-CNC 225; Solid Roller

E-CNC 225 Small-Block Chevy Cylinder Head 70cc Solid Roller

Edelbrock Cyl Heads-Race

Engine Cylinder Head

CYL HEADS-RACE

CYLINDER HEAD

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Engine Compatibility

GM - SBCMatched variant: Chevrolet Small Block

Small Block Chevy; 265–400ci

Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.

Product Specs

Brand
Edelbrock
Part Number
61209
Catalog Number
001132001
Product Line
Victor Cylinder Head
Category
Engines & Parts
Type
Heads
UPC / Barcode
85347612093
Vendor Product Category
Engine Components
Vendor Product Subcategory
Heads
Length
22.19 in
Width
10.13 in
Height
7.19 in
Weight
24.85 lb
Units Per SKU
1
Freight / LTL
No
Air Restricted
No
Prop 65
Y
CARB Approved
No
Clearance Item
No

Shipping & Availability

Current status Special Order
Estimated timing Ships directly from manufacturer

This item is fulfilled directly by the manufacturer/vendor and never stocked. Estimated ship times may vary.

STATE RESTRICTIONS: This item is not CARB approved and can not ship to California.

PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
