Edelbrock

Edelbrock Single Perf RPM Bb/Ford Cj 460 CNC Head Comp

MPN: 61649 Catalog #: 001131973 Category: Heads Check Vehicle Fitment

Product Details

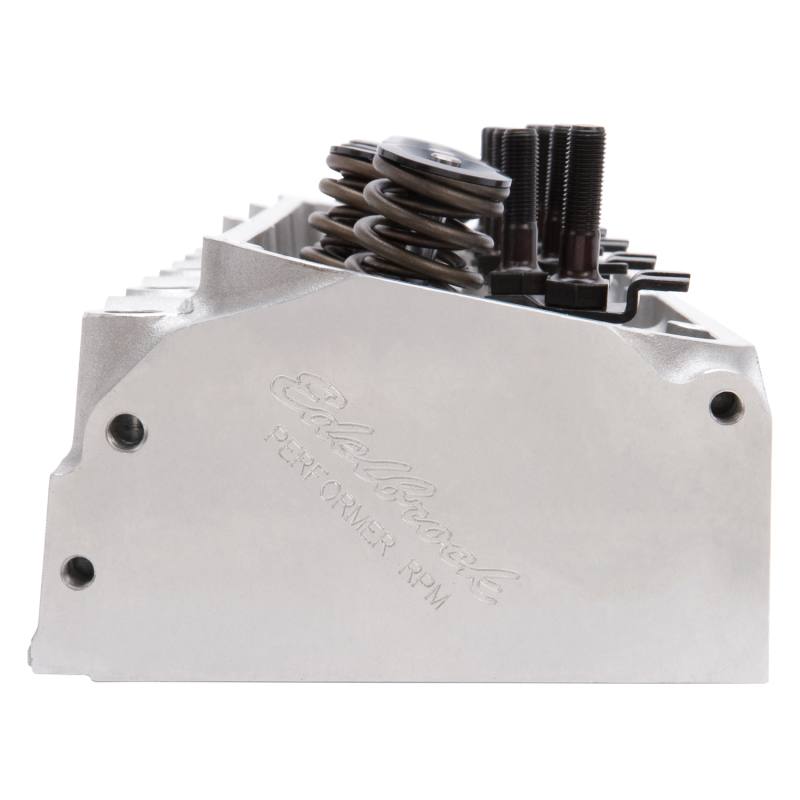

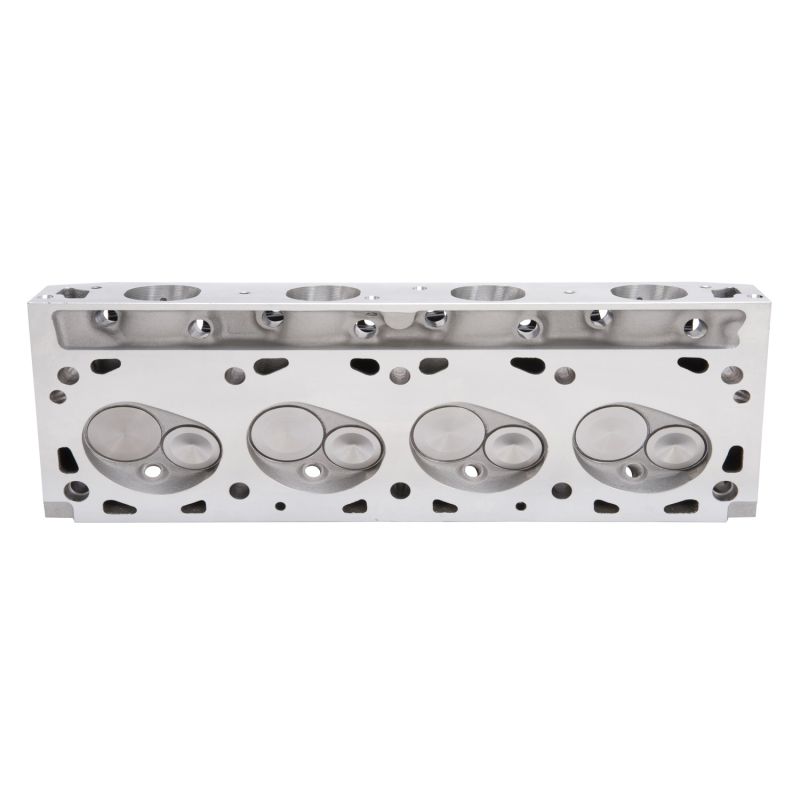

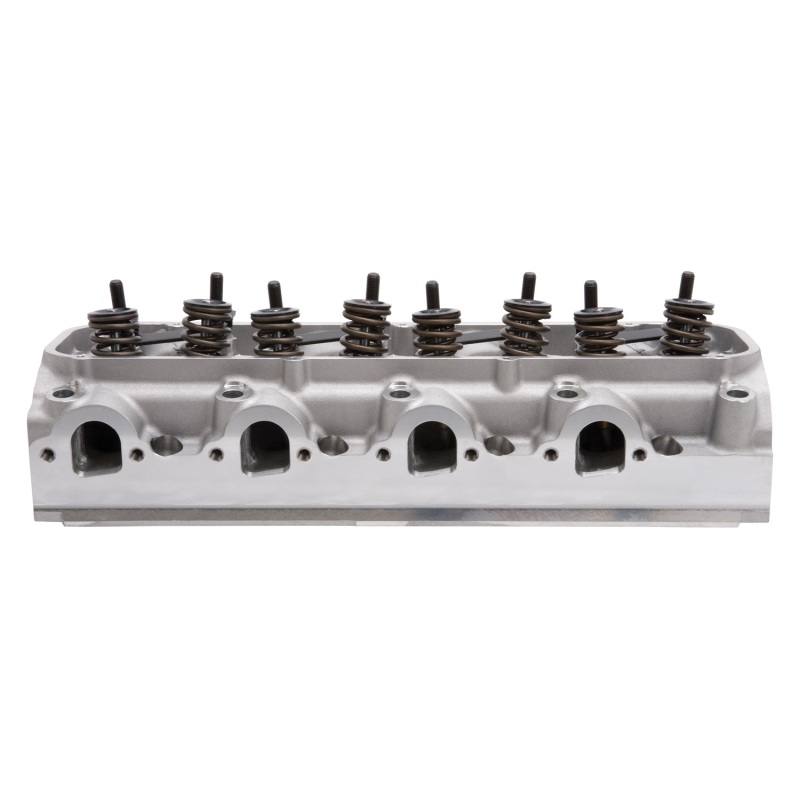

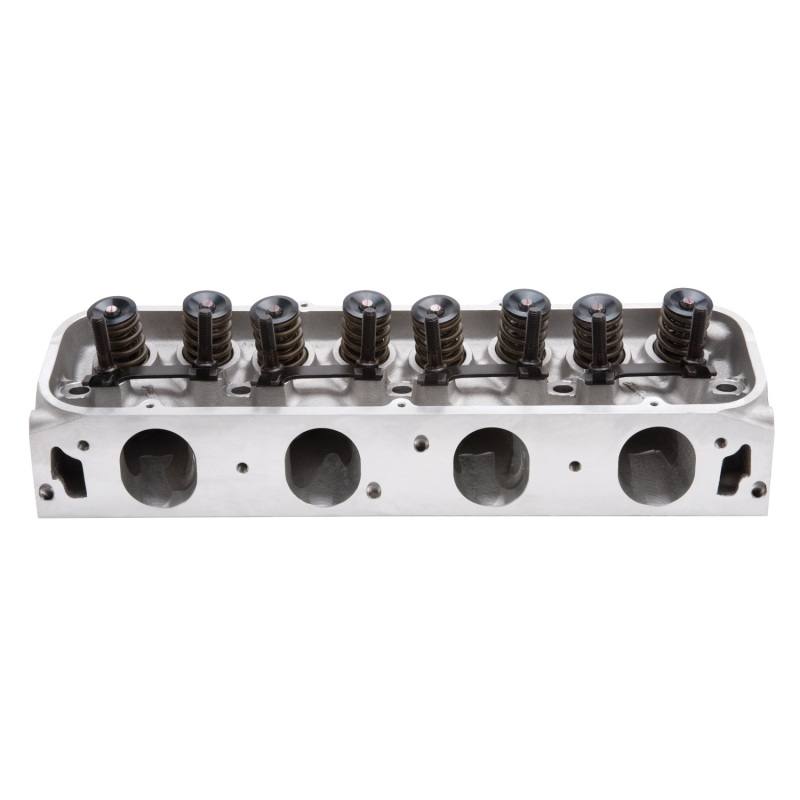

The Edelbrock #61649 Performer RPM CJ cylinder head is designed for use with 1968-87 429/460 Fords and SVO 514 engine applications. The Edelbrock #61649 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.

Edelbrock part #61649 Performer RPM CJ cylinder heads are designed for use with 1968-87 429/460 Fords and SVO 514 engine applications.

Cylinder Head Specifications: Combustion chamber volume:-?75cc, Intake runner, volume:-?310cc, Exhaust runner volume:-?100cc, Intake valve diameter:-?2.19in, Exhaust valve diameter:-?1.76in, Valve stem diameter:-?11/32in, Valve guides:-?Manganese bronze, Deck thickness:-?5/8in, Valve spring diameter:-?1.55in, Valve spring maximum lift:-?.700in, Rocker stud:-?7/16in, Guideplate:-?Hardended steel, Pushrod diameter:-?3/8in, Exhaust port location:-stock, Spark plug fitment:-?14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4in reach with flat gasket seat. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 3/8in (width of slot in guide plate). Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 3/8in (width of slot in guide plate).

Cylinder Head Specifications: Combustion chamber volume:á75cc; Intake runner; volume:á310cc; Exhaust runner volume:á100cc; Intake valve diameter:á2.19; Exhaust valve diameter:á1.76; Valve stem diameter:á11/32; Valve guides:áManganese bronze; Deck thickness:á5/8; Valve spring diameter:á1.55; Valve spring maximum lift:á.700; Rocker stud:á7/16; Guideplate:áHardended steel; Pushrod diameter:á3/8; Exhaust port location:áStock; Spark plug fitment:á14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4 reach with flat gasket seat. Deck thickness: 5/8, rocker stud diameter: 7/16, pushrod diameter: 3/8 (width of slot in guide plate). Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Deck thickness: 5/8, rocker stud diameter: 7/16, pushrod diameter: 3/8 (width of slot in guide plate).

Edelbrock; BBF; Head; 460; CJ; Cylinder Head; 75cc; Hydraulic Flat Tappet; Cam Made In The USA; V8; Cylinder Heads; 61649

RPM Big-Block Ford 460 CJ Cylinder Head 75cc Hydraulic Flat Tappet Cam

Edelbrock Single Perf. RPM BB/Ford CJ 460 CNC Head Comp.

Edelbrock Single Perf RPM Bb/Ford Cj 460 CNC Head Comp

Single Perf. RPM BB/Ford CJ 460 CNC Head Comp.

Ford:Big-Block:429 (7.0L )/460 (7.5L)

Edelbrock Cylinder Heads

Engine Cylinder Head

CYLINDER HEADS

Cylinder Head - Performer RPM - Assembled - 2.190 / 1.760 in Valves - 310 cc Intake - 75 cc Chamber - 1.550 in Springs - Angle Plug - Aluminum - Big Block Ford - Each

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Engine Compatibility

Ford - BBFMatched variant: BBF

Big Block Ford 429/460 385-series

Ford - M-BlockMatched variant: Ford M Block

351M / 400M M-block engines

Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.

Product Specs

Brand
Edelbrock
Part Number
61649
Catalog Number
001131973
Product Line
Performer RPM Cyl Head
Category
Engines & Parts
Type
Heads
UPC / Barcode
85347616497
Vendor Product Category
Engine Components
Vendor Product Subcategory
Heads
Length
26.00 in
Width
11.00 in
Height
8.50 in
Weight
35.00 lb
Units Per SKU
1
Freight / LTL
No
Ship Alone
No
Air Restricted
No
Prop 65
Y
CARB Approved
No
Clearance Item
No
