Edelbrock

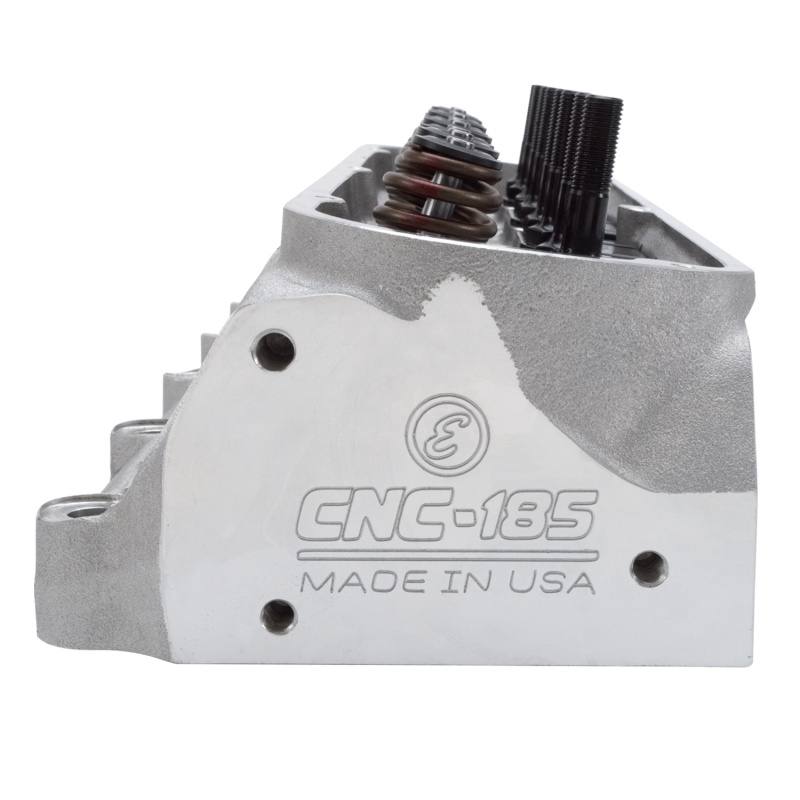

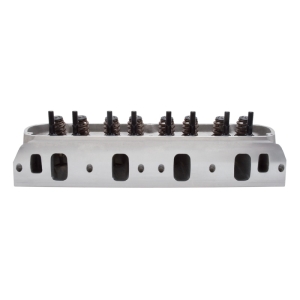

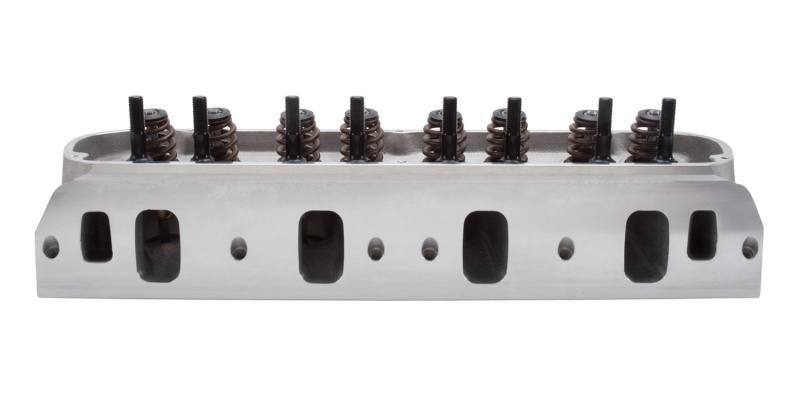

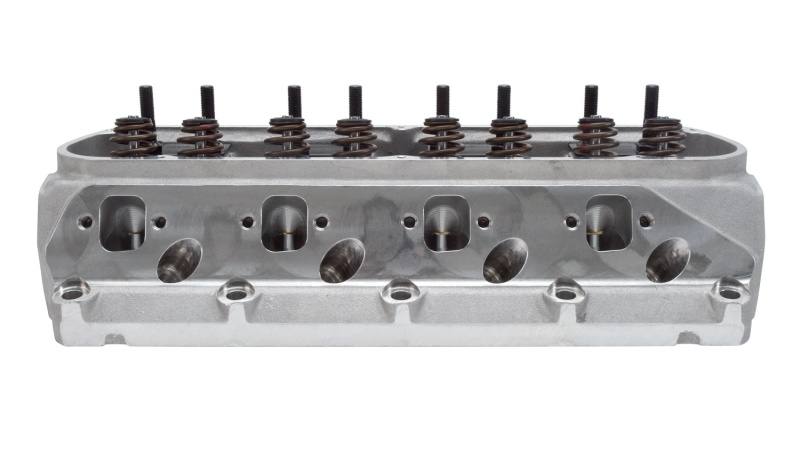

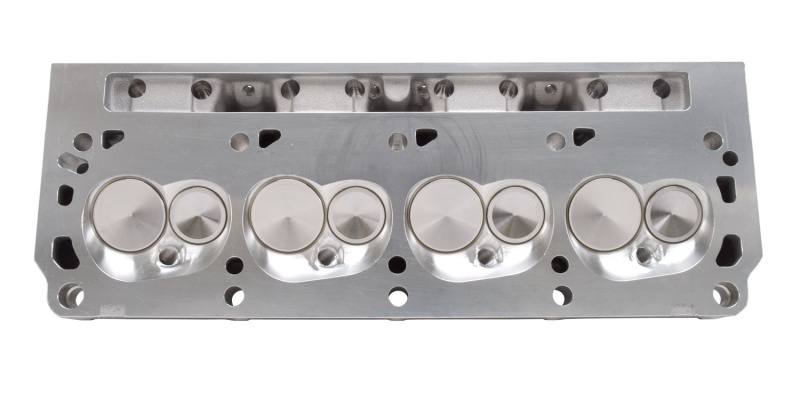

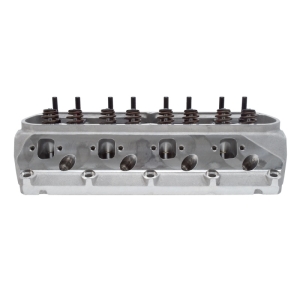

Edelbrock Cyl Head E-Cnc 185 SBF Complete

MPN: 79259 Catalog #: 001131970 Category: Heads Check Vehicle Fitment

Product Details

The Edelbrock part #79259 Small Block Ford E-CNC 185 cylinder head is the ultimate in performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and light duty racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift and maintain the stock exhaust port location.E-CNC 185 FORD FEATURES:- CNC ported to achieve optimal air-flow for maximum horsepower and torque in high Performance's street and light duty racing applications- The casting and port designs are all new and engineered for great performance- Fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow- Head feature 2.02 intake and 1.57 exhaust, 8mm stem valves and are equipped with conical valve springs and steel retainers for a lightweight and durable valve train combo- Aggressive 18deg valve angle for maximum performance and accepts common intake manifolds such as Edelbrock Performer RPM and RPM II- Equipped with valve springs for use in hydraulic roller applications- Combustion chamber size of 59cc- Maximum lift: flat tappet, .600, roller lifter springs, .670

Cylinder Head Specifications: Combustion chamber volume: 59cc, Intake runner volume: 185cc, Exhaust runner volume: 75cc, Intake valve diameter: 2.02in, Exhaust valve diameter: 1.57in, Valve stem diameter: 8mm, Valve guides: Manganese steel, Deck thickness: 5/8in, Valve spring diameter: 1.30in, Valve spring maximum lift: .600in, Rocker stud: 7/16in, Guideplate: Hardened steel, Pushrod diameter: 5/16in, Valve angle: 18, Exhaust port location: Stock, Spark plug fitment: 14mm x 3/4 reach, gasket seat . Match with Edelbrock head gasket sets. IMPORTANT NOTES: The E-CNC 185 cylinder heads for small-block Ford are an all new design that is CNC ported to achieve optimal air-flow for maximum horsepower and torque in high performance street and light duty racing applications. The casting and port designs are all new and engineered for great performance. E-CNC heads feature fully 100percent CNCd intake ports, combustion chambers and exhaust ports for improved air-flow. These heads feature 2.02Gg intake and 1.57Gg exhaust, 8mm stem valves and are equipped with conical valve springs and steel retainers for a lightweight and durable valve train combo. These small-block Ford heads have an aggressive 18 valve angle for maximum performance and accept common intake manifolds such as Edelbrock Performer RPM and RPM II. Deck thickness: 5/8in, rocker stud diameter: 3/8in, pushrod diameter: 5/16in (width of slot in guide plate). Deck thickness: 5/8in, rocker stud diameter: 7/16in, pushrod diameter: 5/16in (width of slot in guide plate). Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Edelbrock pushrods No.9632 are recommended. Requires hardened pushrods. Pedestal mount rockers

Cylinder Head Specifications: Combustion chamber volume: 59cc; Intake runner volume: 185cc; Exhaust runner volume: 75cc; Intake valve diameter: 2.02; Exhaust valve diameter: 1.57; Valve stem diameter: 8mm; Valve guides: Manganese steel; Deck thickness: 5/8; Valve spring diameter: 1.30; Valve spring maximum lift: .600; Rocker stud: 7/16; Guideplate: Hardened steel; Pushrod diameter: 5/16; Valve angle: 18?; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat . * Match with Edelbrock head gasket sets. IMPORTANT NOTES: The E-CNC 185 cylinder heads for small-block Ford are an all new design that is CNC ported to achieve optimal air-flow for maximum horsepower and torque in high performance street and light duty racing applications. The casting and port designs are all new and engineered for great performance. E-CNC heads feature fully 100% CNCÆd intake ports, combustion chambers and exhaust ports for improved air-flow. These heads feature 2.02ö intake and 1.57ö exhaust, 8mm stem valves and are equipped with conical valve springs and steel retainers for a lightweight and durable valve train combo. These small-block Ford heads have an aggressive 18? valve angle for maximum performance and accept common intake manifolds such as Edelbrock Performer RPM and RPM II. Deck thickness: 5/8, rocker stud diameter: 3/8, pushrod diameter: 5/16 (width of slot in guide plate). Deck thickness: 5/8, rocker stud diameter: 7/16, pushrod diameter: 5/16 (width of slot in guide plate). Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Edelbrock pushrods #9632 are recommended. Requires hardened pushrods. Pedestal mount rockers

Cylinder Head Specifications: Combustion chamber volume: 59cc; Intake runner volume: 185cc; Exhaust runner volume: 75cc; Intake valve diameter: 2.02; Exhaust valve diameter: 1.57; Valve stem diameter: 8mm; Valve guides: Manganese steel; Deck thickness: 5/8; Valve spring diameter: 1.30; Valve spring maximum lift: .600; Rocker stud: 7/16; Guideplate: Hardened steel; Pushrod diameter: 5/16; Valve angle: 18?; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat . * Match with Edelbrock head gasket sets. IMPORTANT NOTES: The E-CNC 185 cylinder heads for small-block Ford are an all new design that is CNC ported to achieve optimal air-flow for maximum horsepower and torque in high performance street and light duty racing applications. The casting and port designs are all new and engineered for great performance. E-CNC heads feature fully 100% CNCd intake ports, combustion chambers and exhaust ports for improved air-flow. These heads feature 2.02 intake and 1.57 exhaust, 8mm stem valves and are equipped with conical valve springs and steel retainers for a lightweight and durable valve train combo. These small-block Ford heads have an aggressive 18? valve angle for maximum performance and accept common intake manifolds such as Edelbrock Performer RPM and RPM II. Deck thickness: 5/8, rocker stud diameter: 3/8, pushrod diameter: 5/16 (width of slot in guide plate). Deck thickness: 5/8, rocker stud diameter: 7/16, pushrod diameter: 5/16 (width of slot in guide plate). Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Edelbrock pushrods #9632 are recommended. Requires hardened pushrods. Pedestal mount rockers

Edelbrock; SBF; Head; E-CNC; Small Block Ford; Cylinder Head; Hydraulic Roller Camshaft; Made In The USA; T-6; Tempered A356; V8; Cylinder Heads; 79259

E-CNC Small-Block Ford Cylinder Head Hydraulic Roller Camshaft

Edelbrock CYL HEAD E-CNC 185 SBF COMPLETE

Ford:Small-Block:289 (4.7L)-351W (5.8L)

CYL HEAD E-CNC 185 SBF COMPLETE

Edelbrock Cylinder Heads

Engine Cylinder Head

CYLINDER HEADS

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Engine Compatibility

Ford - M-BlockMatched variant: Ford M Block

351M / 400M M-block engines

Ford - SBFMatched variant: 351W

Small Block Ford 289/302/351W

Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.

Product Specs

Brand
Edelbrock
Part Number
79259
Catalog Number
001131970
Product Line
E-Street Cylinder Head
Category
Engines & Parts
Type
Heads
UPC / Barcode
85347792597
Vendor Product Category
Engine Components
Vendor Product Subcategory
Heads
Length
22.19 in
Width
10.13 in
Height
7.19 in
Weight
32.15 lb
Units Per SKU
1
Freight / LTL
No
Air Restricted
No
Prop 65
Y
CARB Approved
No
Clearance Item
No
