Edelbrock

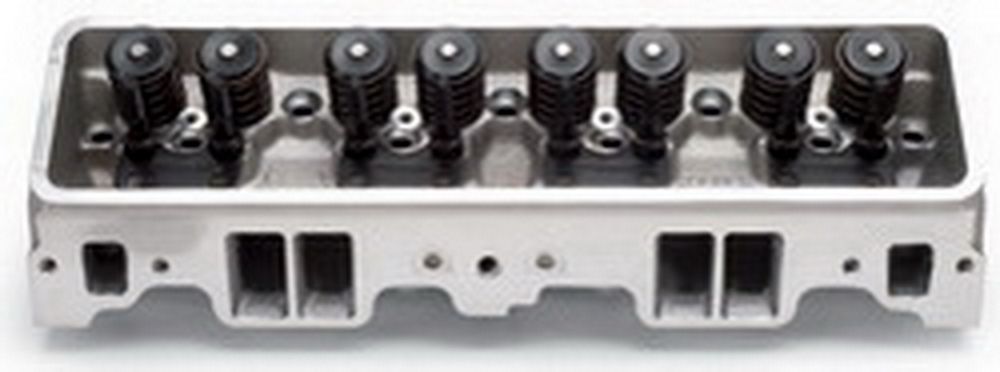

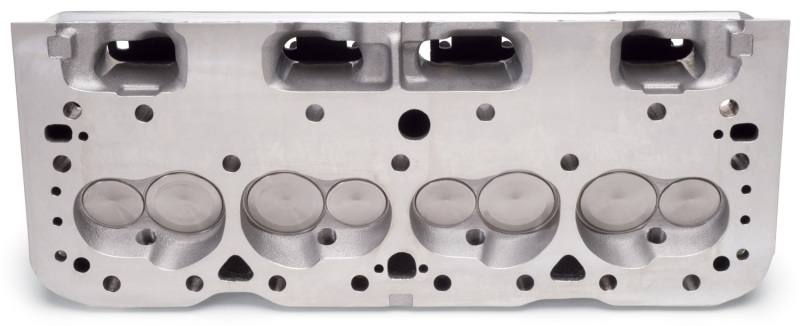

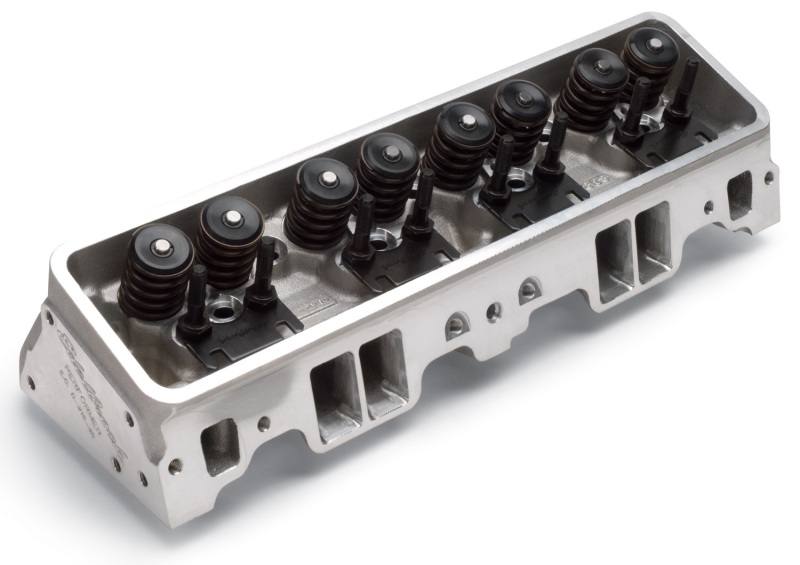

Edelbrock Single Perf SBC C-Bolt Head Comp

MPN: 60859 Catalog #: 001131898 Category: Heads Check Vehicle Fitment

Product Details

The Edelbrock #60859 Small-block Chevy cylinder head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with center bolt valve covers. Performer center bolt cylinder head is 50-state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the 1987-95, 73deg angle on the two center bolts. Will maintain stock compression ratio when used with the recommended head gasket. The Edelbrock Performer head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.

The Small-block Chevy cylinder head is designed for 1987-95 Throttle Body Injected (T.B.I.) and Tuned Port Injected (T.P.I.) 5.7L S/B Chevy engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-state street legal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1987-95, 73? angle on the two center bolts. Will maintain stock compression ratio when used with the recommended head gasket. The Corvette centerbolt cylinder head is designed for 1986-91 Tuned Port Injected (T.P.I) 5.7L small-block Chevy Corvette engines originally equipped with centerbolt valve covers. Performer centerbolt cylinder heads are 50-state street legal and accept factory centerbolt valve covers. The intake bolt pattern utilizes the 1986-91 (straight) 90? angle on all bolts. Spark plugs are angled like stock O.E. heads. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4 reach with flat gasket seat. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Edelbrock pushrods #9632 are recommended. Requires hardened pushrods. Pedestal mount rockers. When using hot air choke Q-Jet carbs, choke kit #1932 is required. Intended for use on small-bore (3.736 - 4.00) 265, 283, 305 & 307 engines. Deck thickness: 9/16, rocker stud diameter: 3/8, pushrod diameter: 5/16 (width of slot in guide plate).

Edelbrock; SBC; Small Block; Chevy; V8; Cylinder Heads; 60849; Center Bolt; Hydraulic Flat Tappet

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Performer Small-Block Chevy Cylinder Head Hydraulic Flat Tappet Cam

Edelbrock Single Perf. SBC C-Bolt Head Comp.

Edelbrock Single Perf SBC C-Bolt Head Comp

Single Perf. SBC C-Bolt Head Comp.

Edelbrock Cylinder Heads

Engine Cylinder Head

CYLINDER HEADS

CYLINDER HEAD

Cylinder Head - Performer Centerbolt - Assembled - 2.020 / 1.600 in Valves - 165 cc Intake - 60 cc Chamber - 1.460 in Springs - Straight Plug - Aluminum - Small Block Chevy - Each

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Engine Compatibility

GM - SBCMatched variant: Chevrolet Small Block

Small Block Chevy; 265–400ci

Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.

Product Specs

Brand
Edelbrock
Part Number
60859
Catalog Number
001131898
Product Line
Performer Cylinder Head
Category
Engines & Parts
Type
Heads
UPC / Barcode
85347608591
Vendor Product Category
Engine Components
Vendor Product Subcategory
Heads
Length
22.45 in
Width
10.55 in
Height
7.25 in
Weight
29.55 lb
Units Per SKU
1
Freight / LTL
No
Ship Alone
No
Air Restricted
No
Prop 65
Y
EPA Status
Compliant
CARB Approved
Yes
CARB EO Number
D-215-94
Clearance Item
No

Shipping & Availability

Current status 26 Available - Ready to ship
Estimated timing Usually ships within 24hrs

This item is showing available inventory. Most in-stock performance parts ship quickly, but timing can vary by warehouse, vendor cut-off time, holidays, and carrier pickup.

PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Inventory shown: 26 available as of 6/3/2026.
