Edelbrock

Edelbrock Single SBC Etec-200 Head Comp

MPN: 60989 Catalog #: 001131836 Category: Heads Check Vehicle Fitment

Product Details

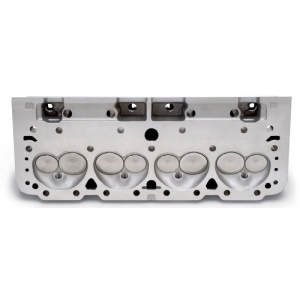

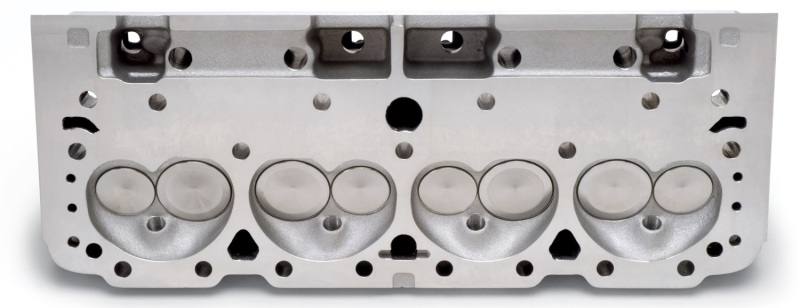

The Edelbrock #60989 E-Tec Cylinder Heads are replacements for 302, 327, 350 & 400 SB Chevy engines with Vortec-style manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance.

The Edelbrock #60989 E-Tec cylinder head is replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with Vortec-style manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. This head includes an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than a cast iron Vortec head, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec cylinder head is dual-drilled and will accept 1987-95 center bolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds.

Cylinder Head Specifications: Combustion chamber vol: 64cc; Intake runner vol: 200cc; Exhaust runner vol: 80cc; Intake v. diameter: 2.02; Exhaust v. diameter: 1.60; V. stem diameter: 11/32; V. guides: Maganese bronze; Deck thickness: 5/8; V. spring diameter: 1.46; V. spring maximum lift: .575; Rocker stud: 3/8; Guideplate: Hardened steel; Pushrod diameter: 5/16; V. angle: 23?; Exh. port location: Stock; Spark plug fitment: 14mm x .750 reach, gasket seat. Edelbrock E-Tec Cylinder Heads are replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with Vortec-style manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. These heads include an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than cast iron Vortec heads, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec cylinder heads are dual-drilled and will accept 1987-95 centerbolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds. INSTALLATION NOTE: Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4 reach with flat gasket seat. To use stock rockers on small-block Chevy heads, .100 longer than stock pushrods are required. Edelbrock pushrods #9629 are recommended. Use Head Bolt Kits for easy installation. S/B Chevy heads may not be used on engines with less than 4 bore (262, 265, 283, 305, 307 c.i.d.) except with cams having less than .450 valve lift.

Edelbrock; SBC; E-Tec-200; Small Block Chevy; Cylinder Head; Hydraulic Flat Tappet Cam; V8; Cylinder Heads; 60989

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

E-Tec-200 Small-Block Chevy Cylinder Head Hydraulic Flat Tappet Cam

Edelbrock Single SBC ETEC-200 Head Comp.

Edelbrock Single SBC Etec-200 Head Comp

Single SBC ETEC-200 Head Comp.

Edelbrock Cylinder Heads

Engine Cylinder Head

CYLINDER HEADS

CYLINDER HEAD

Vehicle Fitment

Universal or product-specific fitment. Please review the product details and contact us if you need help confirming fitment before ordering.

Engine Compatibility

GM - LTMatched variant: LT1

GM Gen V Small Block; LT1/LT4/LT5

GM - SBCMatched variant: Chevrolet Small Block

Small Block Chevy; 265–400ci

GM - VortecMatched variant: Vortec

Truck Vortec V8; 4.8/5.3/6.0

Fitment note: Engine compatibility is provided as a guide. Please verify all fitment details before ordering.

Product Specs

Brand
Edelbrock
Part Number
60989
Catalog Number
001131836
Product Line
Performer RPM Cyl Head
Category
Engines & Parts
Type
Heads
UPC / Barcode
85347609895
Vendor Product Category
Engine Components
Vendor Product Subcategory
Heads
Length
26.00 in
Width
11.00 in
Height
8.50 in
Weight
30.00 lb
Units Per SKU
1
Freight / LTL
No
Air Restricted
No
Prop 65
Y
CARB Approved
No
Clearance Item
No

Shipping & Availability

Current status 38 Available - Ready to ship
Estimated timing Ships from factory

This item is showing manufacturer availability and may ship directly from the manufacturer. Tracking details are provided as soon as they become available. ETA 0-5 Days to ship.

STATE RESTRICTIONS: This item is not CARB approved and can not ship to California.

PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Inventory shown: 38 available as of 6/3/2026.
