BMR Suspension

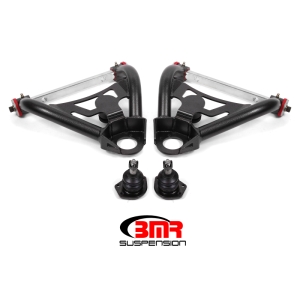

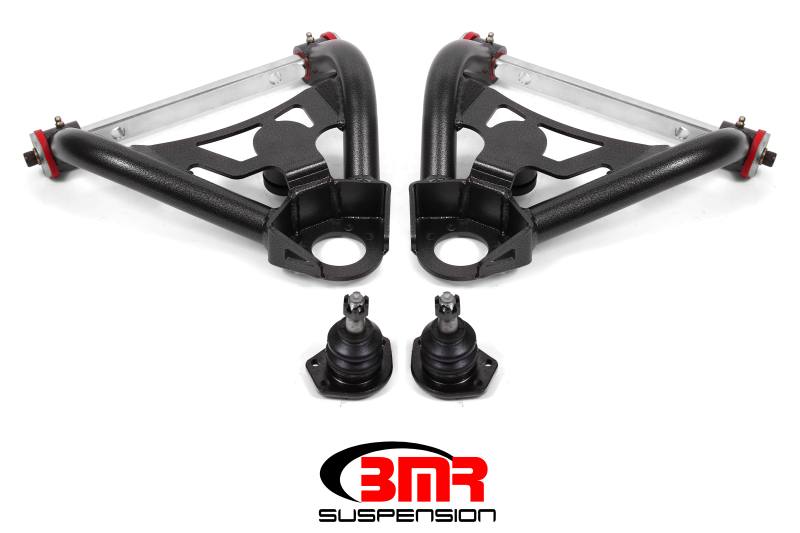

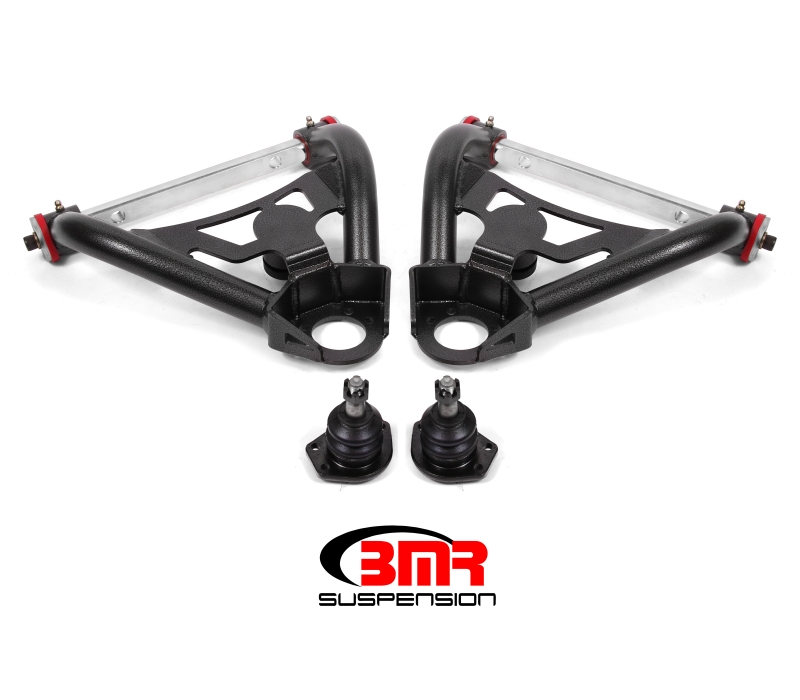

BMR A-body tubular upper A-arms for stock spindles Black Hammertone

MPN: AA017H Catalog #: 001043839 Category: Control Arms Check Vehicle Fitment

Product Details

Fits 1964-1972 GM A-Body,Eliminates upper A-arm deflection,Improves steering feel and response for normal and performance driving,Increased high-speed stability,Laser-cut, CNC-formed plate steel braces for extra strength,Fixture welded for precise fi

The polyurethane bushings add strength and reduce deflection over the stock rubber bushing, while still absorbing much of the NVH. The means you get a great blend of performance and comfort. Designed for street A-arms are one of the most important, yet overlooked suspension components. They are the direct link between the front wheels and the chassis. Any deflection causes a change in alignment, which results in poor performance and driving feel. Fabricated from heavy-duty 1.25-inch, 0.095-inch wall DOM tubing with laser-cut, CNC-formed plate steel braces for extra strength, deflection is eliminated with A-arms from BMR's suspension. BMRs AA017 Upper A-arms are equipped with CNC machined, nickel-plated, dual-offset cross-shafts with heavy-duty stainless bushing retainers. They come pre-assembled with new polyurethane bump stops, and new upper ball joints are included. Greaseable, 95-durometer bushings add a solid, more responsive feel over the stock rubber bushings. BMRs bushings are internally fluted, which allows grease to evenly coat the inner sleeve. These flutes also direct grease to the outer edge of the bushing, keeping the thrust surface lubricated. This efficient lubrication ensures quiet, reliable operation over the life of the bushings.BMRs AA017 Upper A-arms eliminate upper A-arm deflection, greatly improving steering feel and response in normal and performance driving situations. The compact design provides additional header clearance over stock A-arms, allowing you to run larger primary tubes for high-horsepower applications.

Replace you stamped steel factory A-arms with a set of stronger, lighter tubular BMR A-arms. BMR A-arms are fabricated from heavy duty MIG welded DOM tubing and come pre-assembled with low deflection polyurethane bushings and bump stops. Lower arms work with all stock replacement shocks or with the popular QA1 Pro Coil kit. Uppers also provide additional header clearance over stock. Together expect a weight savings of 10 lbs. Lowers come pre-assembled with all bushings and a new ball joint. Uppers come pre-assembled with a new billet cross shaft and polyurethane bump stop bushings. New upper ball joints available upon request. Powdercoated silver vein.

Upper control arms Part # AA018 are designed for use with the popular F and B-body tall spindles. This upgrade provides improved handling by creating a more negative camber curve and allows the use of easy to find 11(F-body) and 12(B-body) brake rotors. NOTE-Use of these spindles will lower vehicle by approximately 3/4 and will widen track width by 3/8 per side.

GENERAL MOTORS A-BODY (1964-1977) Chevrolet: Chevelle, El Camino, Malibu and Monte Carlo Pontiac: Lemans and GTO Buick: Skylark, Special, and Grand Sport Oldsmobile: Cutlass, 442, and F-85

Vehicle Fitment

Please verify year, make, model, and any notes before ordering.

Product Specs

Brand
BMR Suspension
Part Number
AA017H
Catalog Number
001043839
Product Line
Control Arms
Category
Suspension
Type
Control Arms
UPC / Barcode
887753320988
Vendor Product Category
Suspension
Vendor Product Subcategory
Control Arms
Box Length
22.00 in
Box Width
15.00 in
Box Height
7.00 in
Ship Weight
18.00 lb
Units Per SKU
1
Freight / LTL
No
Air Restricted
No
Prop 65
Unknown
CARB Approved
Yes
Clearance Item
No

Shipping & Availability

Current status Special Order Dropship
Estimated timing Ships directly from manufacturer

This item is fulfilled directly by the manufacturer/vendor and never stocked. Estimated ship times may vary.

PROP 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
